Sixfab Edge Outdoor Kit - IP66 Rated
Request a quote- Ships from Germany in 1–3 business days
- 2-year warranty
- Secure checkout
Description

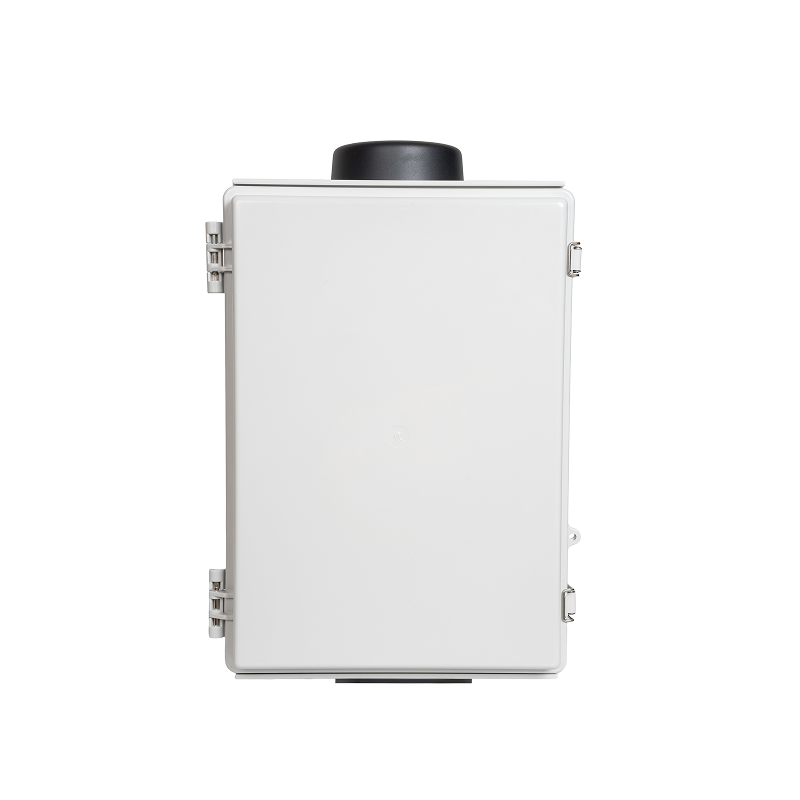

Make your ALPON computers and electronics projects outdoor-ready, with versatile customization features. The Sixfab Edge Outdoor Kit is a rugged, UV-resistant IP66-rated enclosure kit designed to protect electronics in harsh outdoor environments.
It comes pre-installed with a combo antenna, cable management panel, and multiple mounting options - ideal for smart city, industrial IoT, and remote deployments. Its robust construction and pre-mounted antenna system keep your edge computers and sensitive electronics running across various weather conditions.
Performance at a glance
- IP66Water, dust and UV protection
- ASAUV-resistant main body
- Wall / poleMounting hardware included

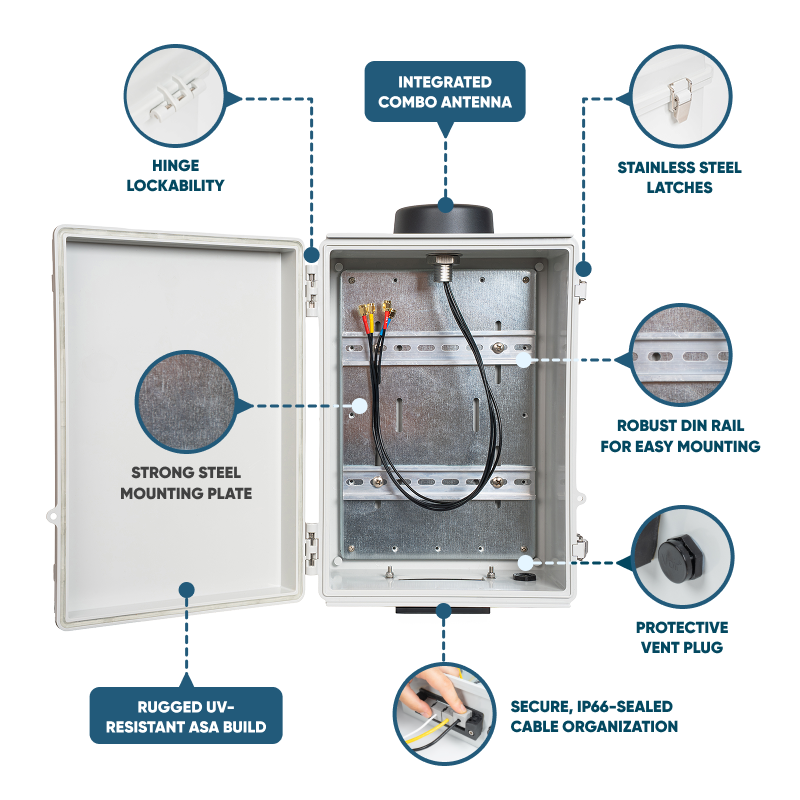

Highlights
- Adaptable designModular enclosure for various project requirements.
- IP66 waterproof & dustproofKeeps out rain, snow, dust, oil, and debris - ideal for outdoor deployments.
- Integrated combo antennaLTE, GNSS, and Wi-Fi connectivity built in for quick deployment.
- Durability & impact resistanceTough, UV-resistant ASA construction and stainless steel hardware for long-term reliability.
- Air ventilation for moisture controlIntegrated breathable membrane equalizes pressure and minimizes condensation inside the enclosure for extended device life.

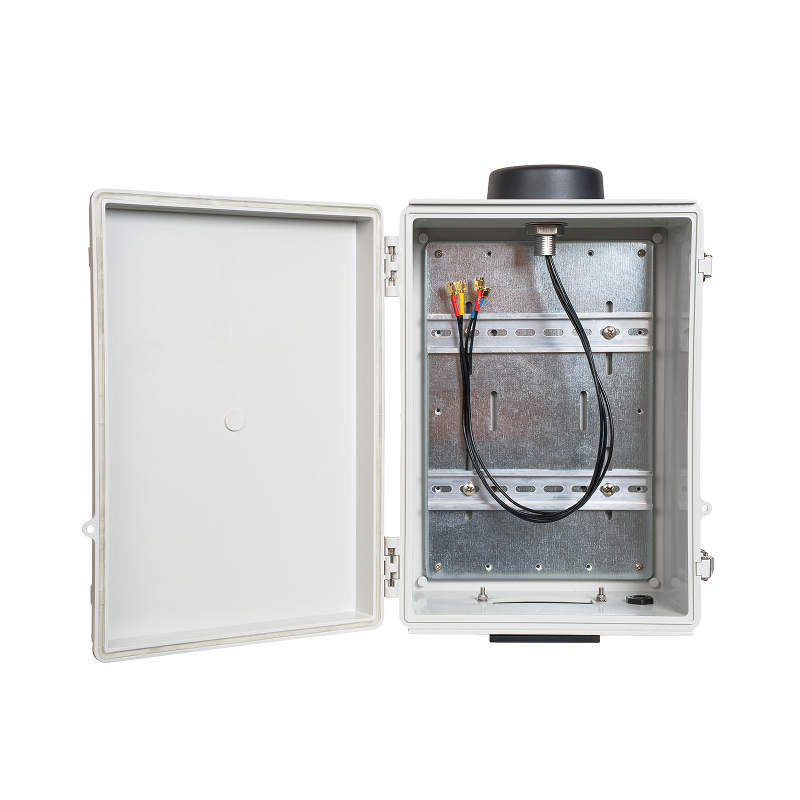

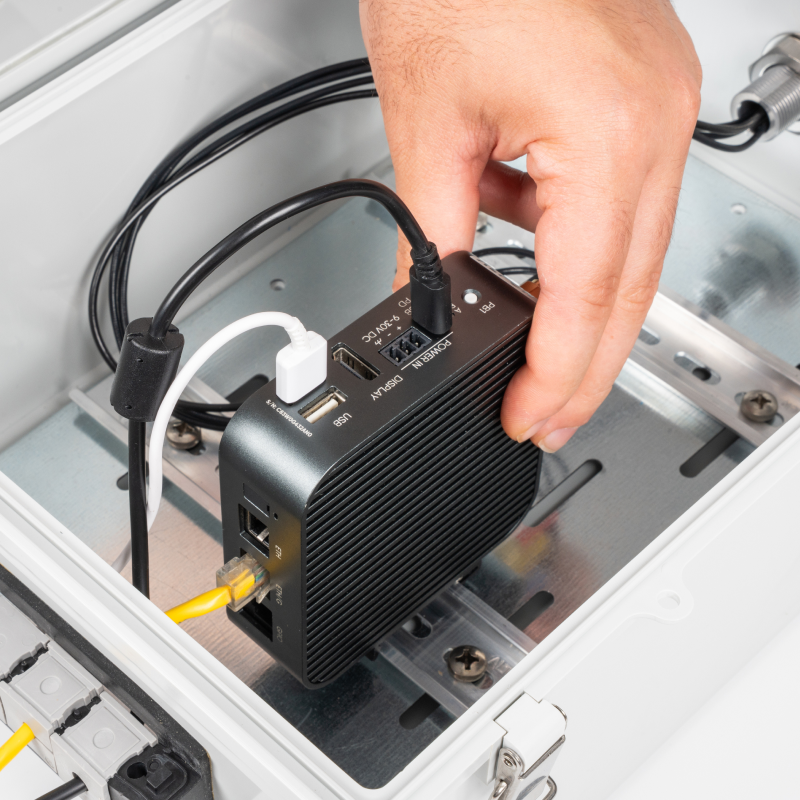

- Plug & play installationPre-mounted combo antenna, adaptable cable glands, DIN rail system, and mounting hardware included for quick setup.
- Versatile mounting optionsWall or pole mount using the included brackets and steel straps. All hardware is stainless steel and weather-resistant for outdoor use.
- Customizable for your projectModular design lets you tailor the kit to your project's unique needs from ALPON edge computers to other electronics projects.
Technical specifications
| Material | ASA Main Body (UV-Resistant), Stainless-steel Metals |
|---|---|
| Waterproof rating | IP66 |
| Operating temp | -20 °C to +60 °C |
| Mounting options | Wall Mount / Pole Mount |

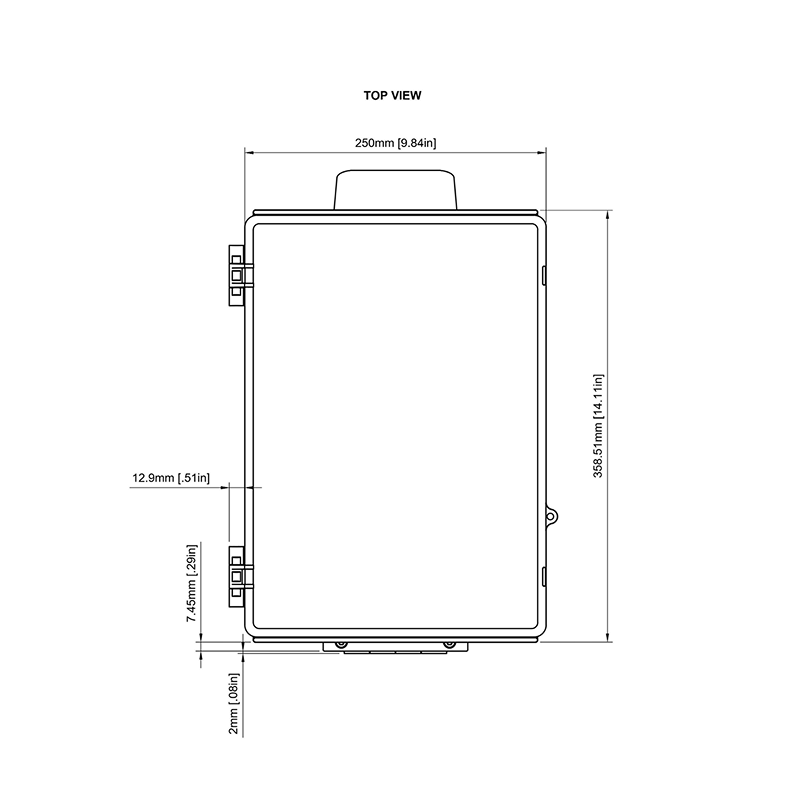

| Enclosure dimensions | 272.4 × 401.1 × 152 mm (10.72 × 15.79 × 5.98 in) |
| Antenna support | Built-in combo antenna with SMA ports |

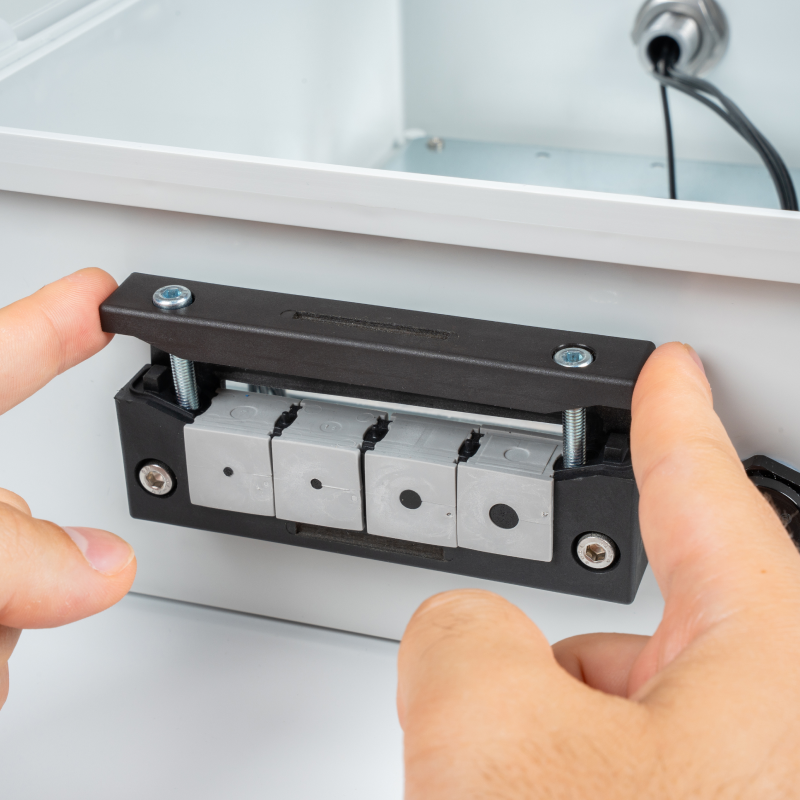

| Cable entry | Multi-size cable glands with inserts |
Why choose the Sixfab Edge Outdoor Kit?
- Engineered for ALPON edge computers and beyond
- Provides IP66-rated protection from water, dust, and UV exposure
- Pre-integrated antenna system saves time and space
- Fully modular and adaptable for different projects
- Built to last with industrial-grade materials
What's in the box
- IP66 Waterproof Enclosure×1
- IP66 Pre-installed Combo Antenna×1
- IP66 Pre-installed Cable Management Panel×1
- Pre-installed Protective Vent Plug×1
- IP66 Certified Cable Insert Plugs×8
- 4 mm Allen Key×1
- Wall Mounting Bracket×4
- 8 mm Plastic Wall Plug and Screw×5
- Stainless Steel Universal Sign Clips for Pole Mount Signs (230 mm)×2
- 9 mm Metal Hose Clamp for Pole Mount (1.5 meters)×2
- Band Clamp×3
- 5.0 x 10 mm Screw for Wall/Pole Mounting Bracket×4
- Set of Insert Plugs (2 mm, 3 mm, 5 mm, 7 mm)×1
- Cable Ties (3.6 x 300 mm)×12
- Cable Holder×12
Screws and nuts are stainless steel. A plier is needed during assembly but is not included in the package.
