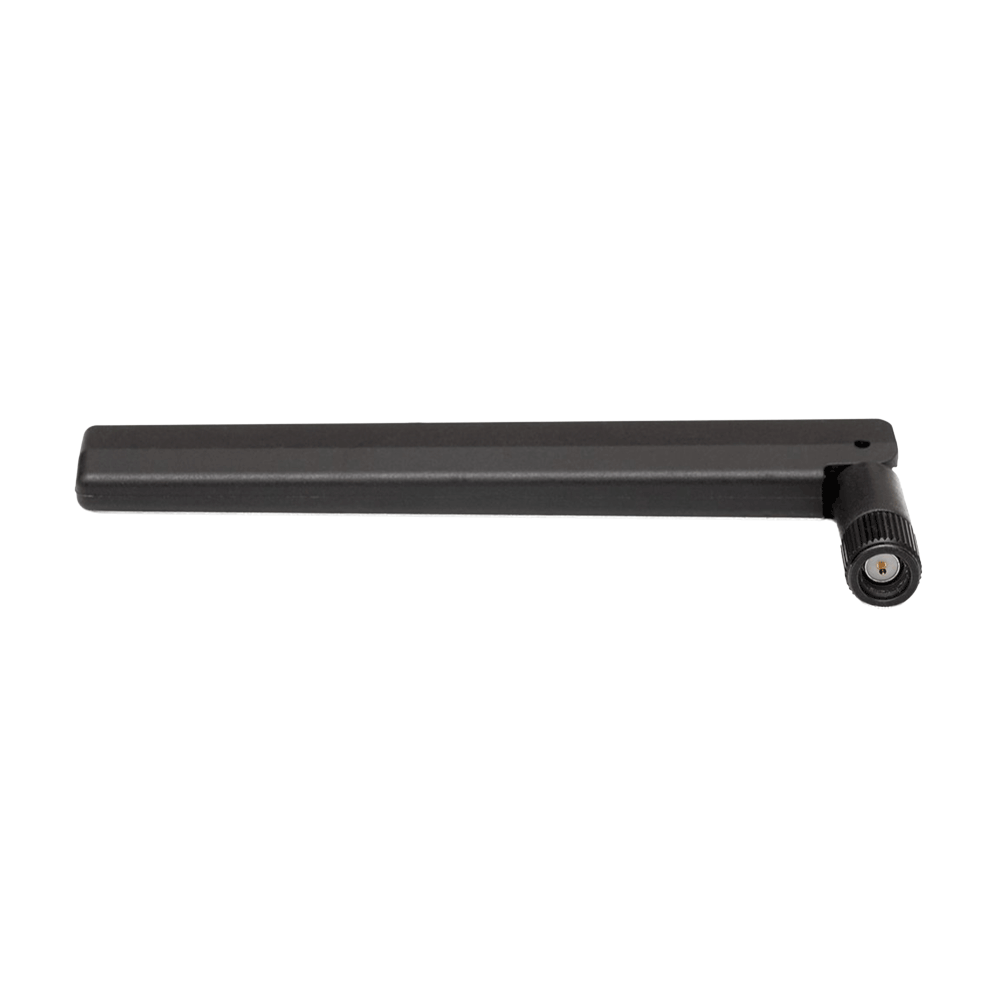

5G/LTE Cellular Omni-Directional Antenna
Request a quote- Ships from Germany in 1–3 business days
- 2-year warranty
- Secure checkout
Description
This versatile and powerful connector-mount antenna is engineered to deliver consistent and reliable performance for a wide range of wireless applications. It supports 5GNR, 4G LTE, 3G, and 2G standards with backward and forward compatibility.
The antenna features a UV-stable housing rated for demanding environments with an operating temperature span of -40 °C to +85 °C, and a ground plane independent design for flexible installation.
Performance at a glance
- 617-5925 MHz5G · 4G · 3G · 2G
- Up to ~43.3%Efficiency
- −40 → +85 °CUV-stable PC/ABS
Highlights
- Comprehensive cellular support5G, 4G LTE, 3G, 2G, CBRS, LPWA, and NB-IoT.
- Ultra-wide frequency supportOperates across all key cellular bands from 617 MHz to 5925 MHz.
- Omni-directional performanceProvides a uniform 360-degree radiation pattern.
- High efficiencyEngineered for high efficiency, reaching up to 43.3%.

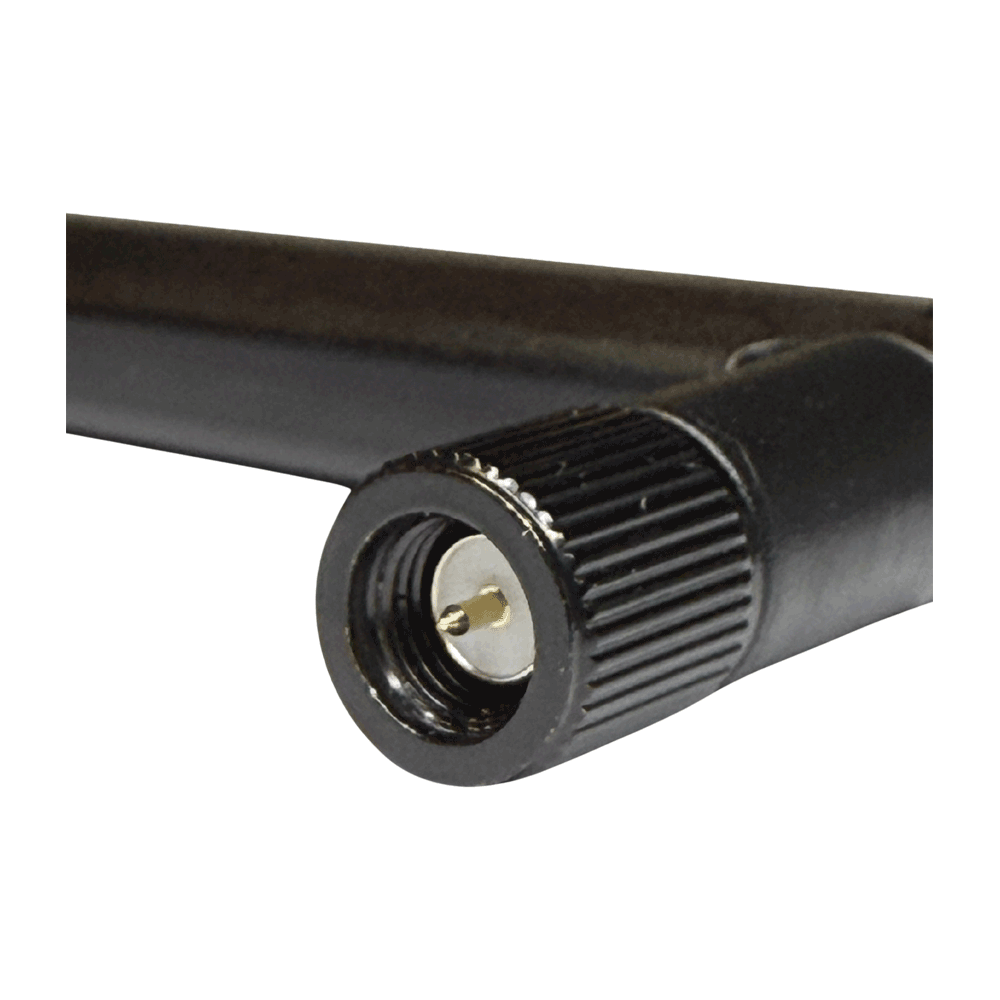

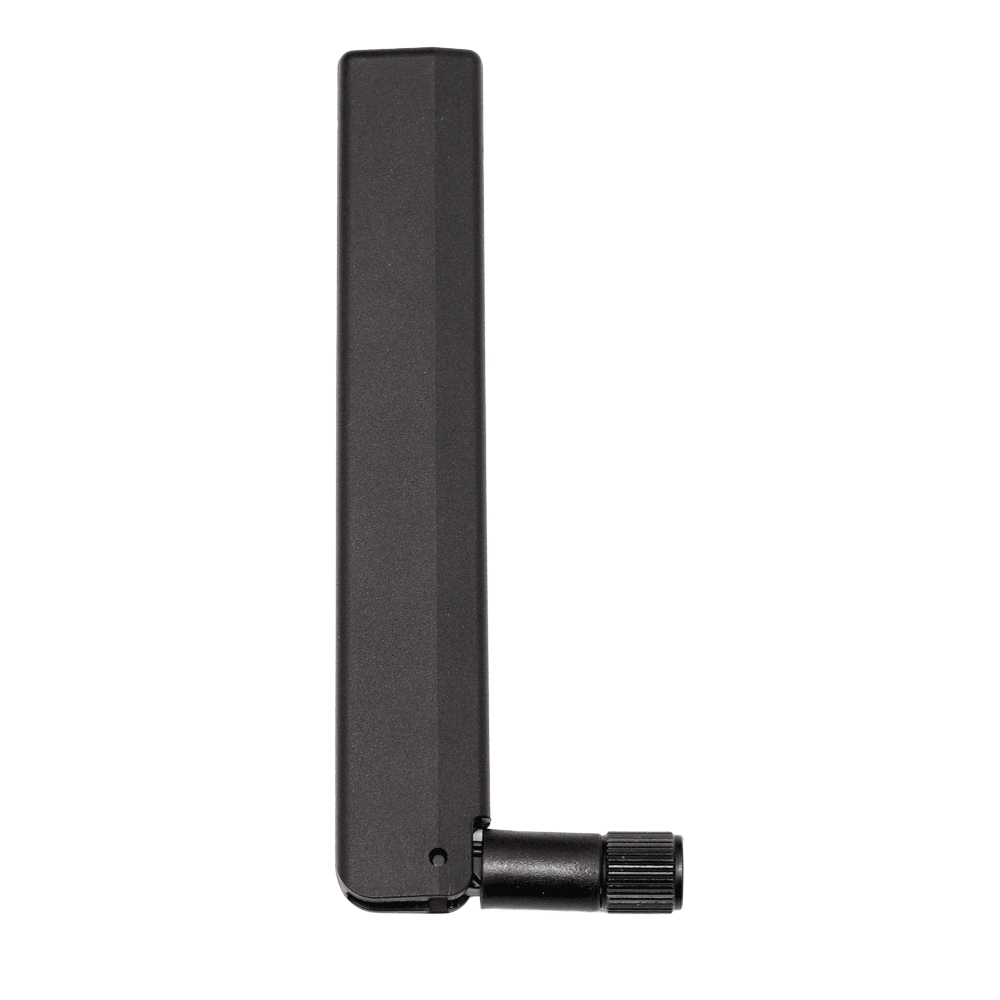

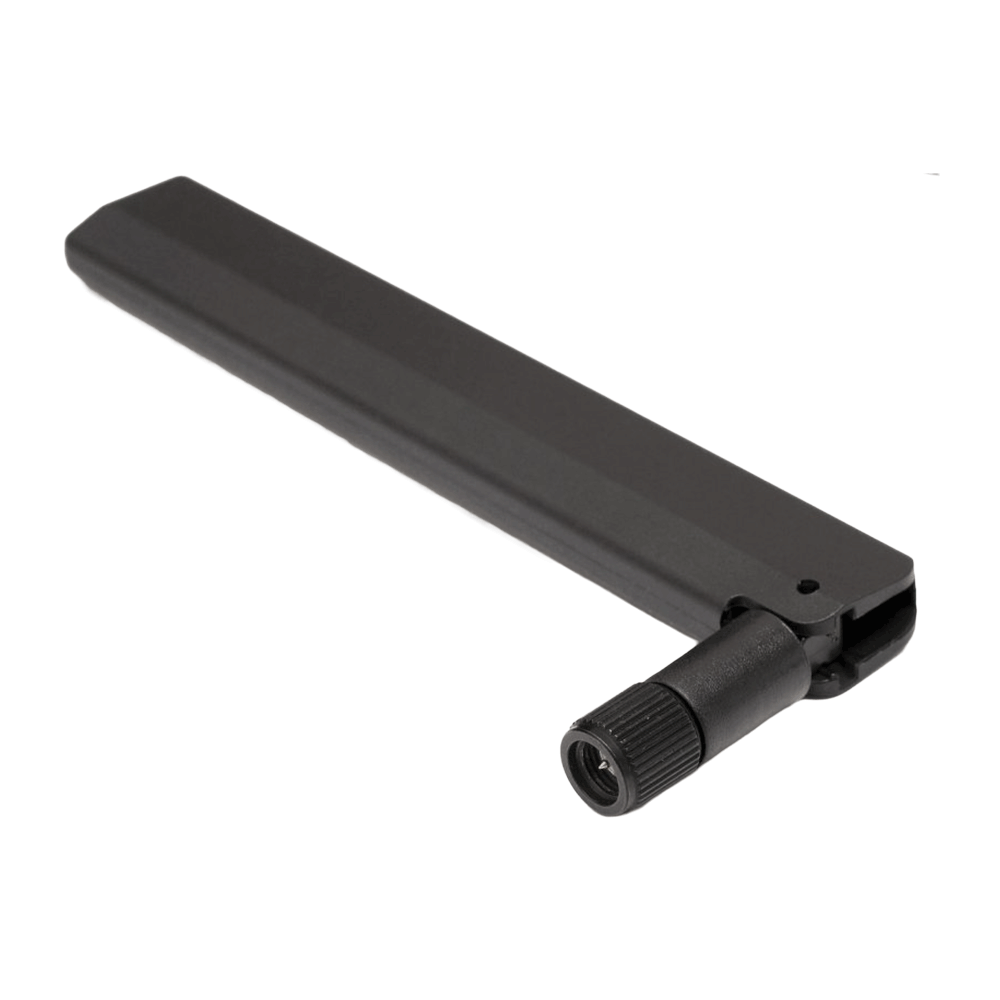

- Hinged SMA-MalePositioning at 0°, 45°, and 90° angles.
- UV-stable radomeBlack PC/ABS material.
Technical specifications
| Frequency bands | 617-960 MHz, 1427-2690 MHz, 3300-5000 MHz, 5150-5925 MHz |
|---|---|
| Supported technologies | 5G, 4G, 3G, 2G |
| Peak gain | Up to ~0.3 dBi |
| Efficiency | Up to ~43.3% |
| VSWR | ≤ ~2.6:1 |
| Polarization | Linear |
| Impedance | 50 Ohm |
| Max input power | 25 Watts |
| Connector type | SMA-Male |
| Mounting | Direct Connector Mount |
| Radome material | PC/ABS (UV Stable) |
| Operating temp | -40 °C to +85 °C |
| Dimensions | Straight: 135 mm × 19 mm × 10 mm · Right angle: 110 mm (H) × 42 mm (L) |
