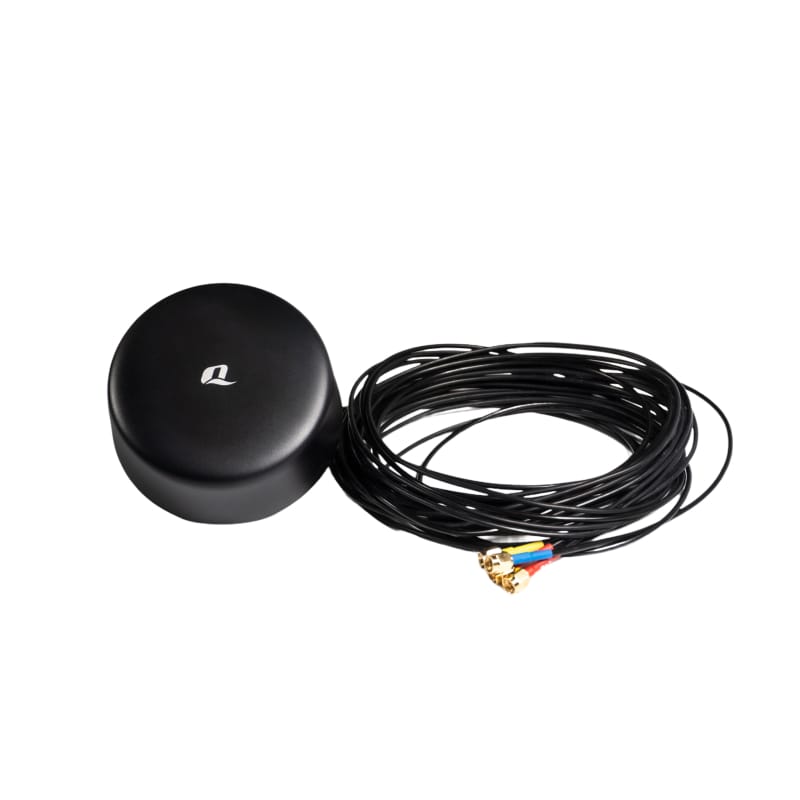

ALPON Combo Antenna
Request a quote- Ships from Germany in 1–3 business days
- 2-year warranty
- Secure checkout
Description
The Combo antenna is a versatile 4-in-1 combination antenna, designed for optimal performance in various wireless and digital communication systems.
This integrated solution merges multiple technologies into one compact unit for reliable connectivity in demanding applications.
Performance at a glance
- 4-in-14G · Wi-Fi · GNSS
- IP67Screw mount
- −40 → +85 °COperating temperature
Highlights
- Compact designCombines multiple antennas in a single enclosure for space-saving deployment.
- Enhanced signal strengthSupports stable and reliable connectivity across various frequencies.
- Wide compatibilityDesigned for use in industrial, commercial, and digital applications.
- Robust build qualityBuilt to endure harsh conditions, ensuring long-term reliability.
Technical specifications
| Product | |
|---|---|
| Type | 4G & WIFI & GNSS 4-in-1 Screw Mount Combo Antenna |
| Efficiency | Up to 42.7% (4G-1 FS) |
| GNSS LNA gain | 28 ±3 dB |
| Electrical | |
| Frequency range | 4G: 600-960 MHz, 1420-2690 MHz, 3300-4200 MHz, 4400-6000 MHz · Wi-Fi: 2400-2500 MHz, 5150-5850 MHz · GNSS: 1164-1189 MHz, 1565-1606 MHz |
| Radiation pattern | 4G & Wi-Fi: Omni-directional · GNSS: Directional |
| Polarization | 4G & Wi-Fi: Linear · GNSS: RHCP |
| Impedance | 50 Ω |
| Isolation | FS: ≤ -9.3 dB · MP: ≤ -11.9 dB |
| Mechanical & environmental | |
| Antenna dimensions | Φ 103.5 mm × 42.5 mm |

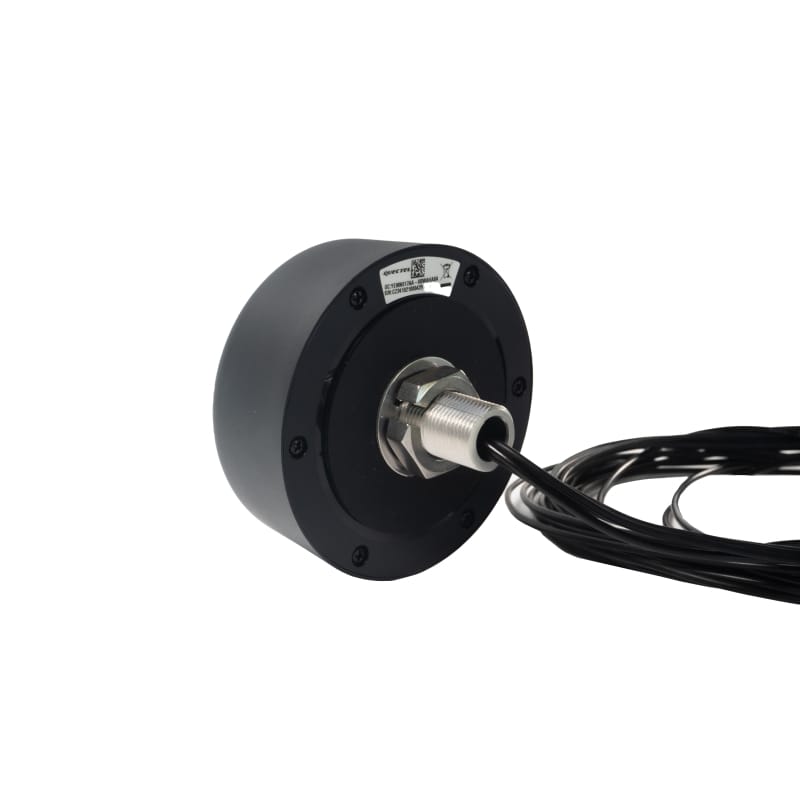

| Casing material & color | PC & Black |

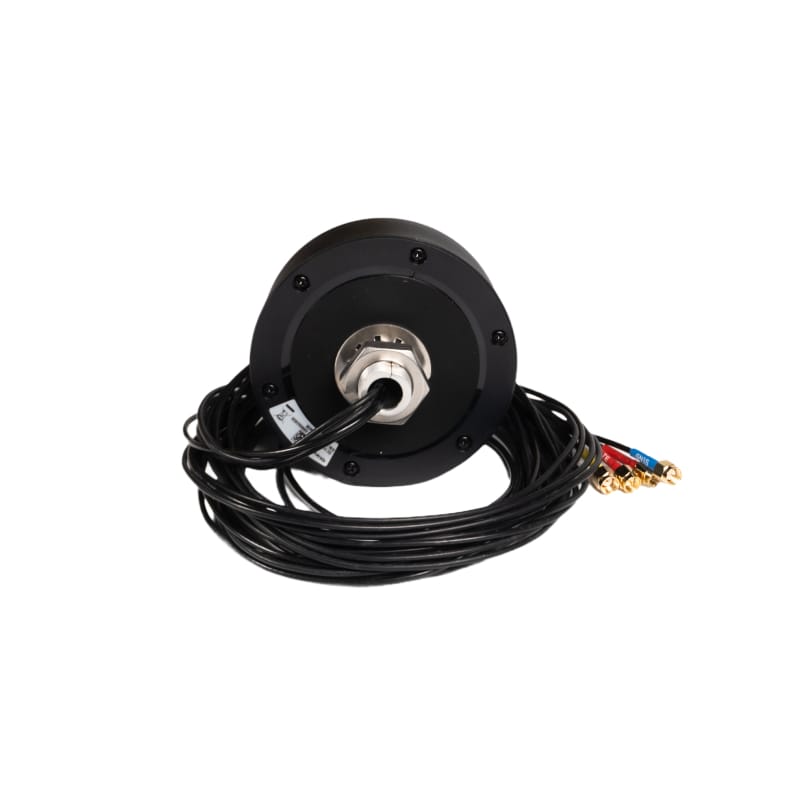

| Cable type, color & length | 4G: RG405, Black, 3000 mm · WiFi: RG405, Black, 3000 mm · GNSS: RG174, Black, 3000 mm |

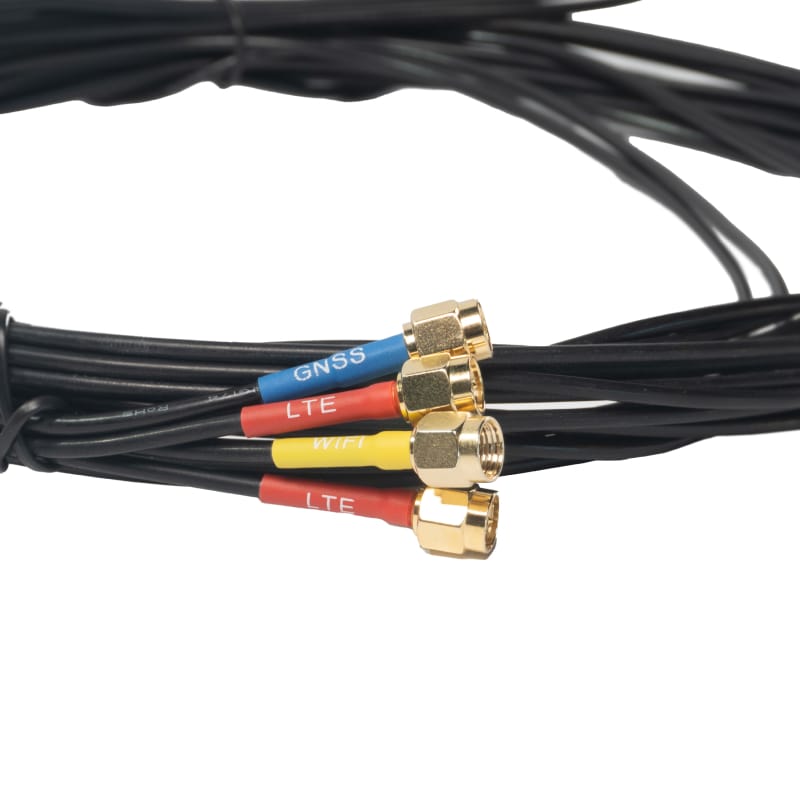

| Connector type | 4G & GNSS: SMA Male · WiFi: RP SMA Male |
| Weight | 445 g typical |

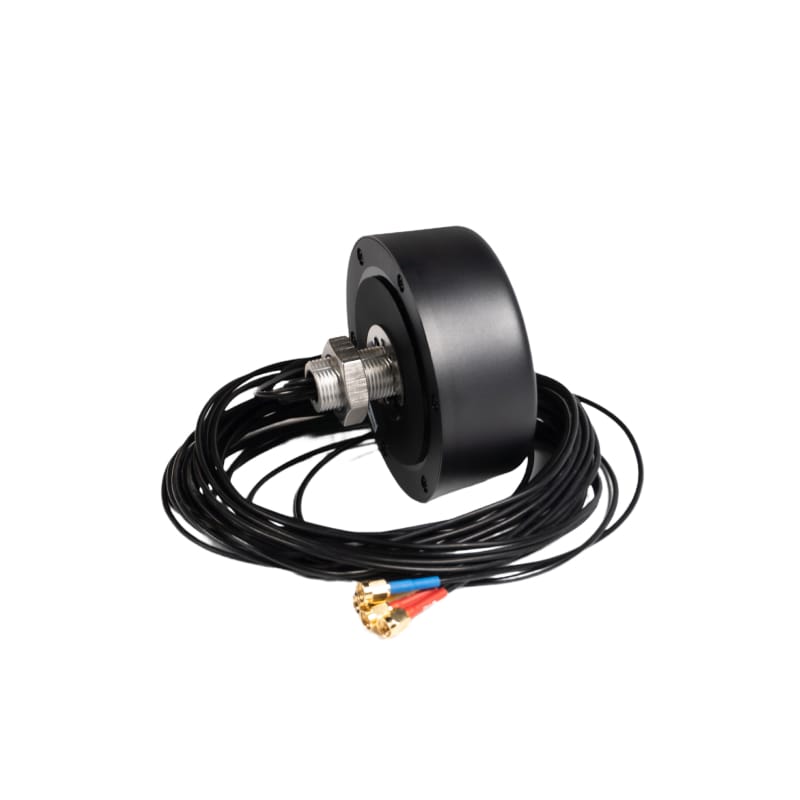

| Mounting type | Screw |
| Operating temp | -40 °C to +85 °C |
| Storage temp | -40 °C to +85 °C |
| IP rating | IP67 |
| RoHS & REACH compliant | Yes |
| Housing flame rating | UL 94 V-0 |
| Housing UV resistant | UL 746c f1 |
What's in the box
- ALPON Combo Antenna×1
