ALPON X4 Edge Computer
Request a quote- Ships from Germany in 1–3 business days
- 2-year warranty
- Secure checkout
Description
The ALPON X4 is a powerful and reliable edge computer tailored for IoT and industrial use, combining robust hardware with seamless cloud integration.
A versatile edge computing solution for industrial IoT applications, it enables real-time data processing with low-latency decision-making, reduces reliance on constant cloud connectivity and supports diverse deployment environments through multiple connection types.
Performance at a glance
- Raspberry Pi CM4Quad-core Cortex-A72 @ 1.5 GHz
- Cat4 LTE+ Wi-Fi, Bluetooth 5.0, Gigabit Ethernet
- −20 → +60 °CFanless aluminum chassis
Highlights
- Raspberry Pi CM4 poweredDelivers fast and efficient data processing.
- Rugged designFanless aluminum chassis for harsh environments - dust-resistant and durable.
- Flexible connectivityEthernet, Wi-Fi, LTE, and eSIM for auto network switching and global coverage.
- Seamless connectivityMulti-network redundancy for uninterrupted operation.
- Simplified managementManage devices easily via ALPON Cloud for remote updates, monitoring, and bulk provisioning.
- Advanced managementRemote control, OTA updates, secure monitoring.
- Enhanced securityTPM 2.0 and encrypted communication for secure operations.
Technical specifications
| Processor | Quad-core Cortex-A72 @ 1.5 GHz - Compute Module 4 |
|---|---|
| RAM | 8GB LPDDR4 (Optional: 2GB, 4GB) |
| Storage | 32GB eMMC Flash storage (Optional: 8GB, 16GB) |
| Connectivity | Cat4 LTE, Wi-Fi 2.4/5GHz, Bluetooth 5.0 BLE, Gigabit Ethernet |
| Power input | USB-PD Type-C, Screw Terminal Block (9-30V DC), PoE+ IEEE 802.3at (Optional) |
| Operating temp | -20 °C to +60 °C (-4 °F to +140 °F) |

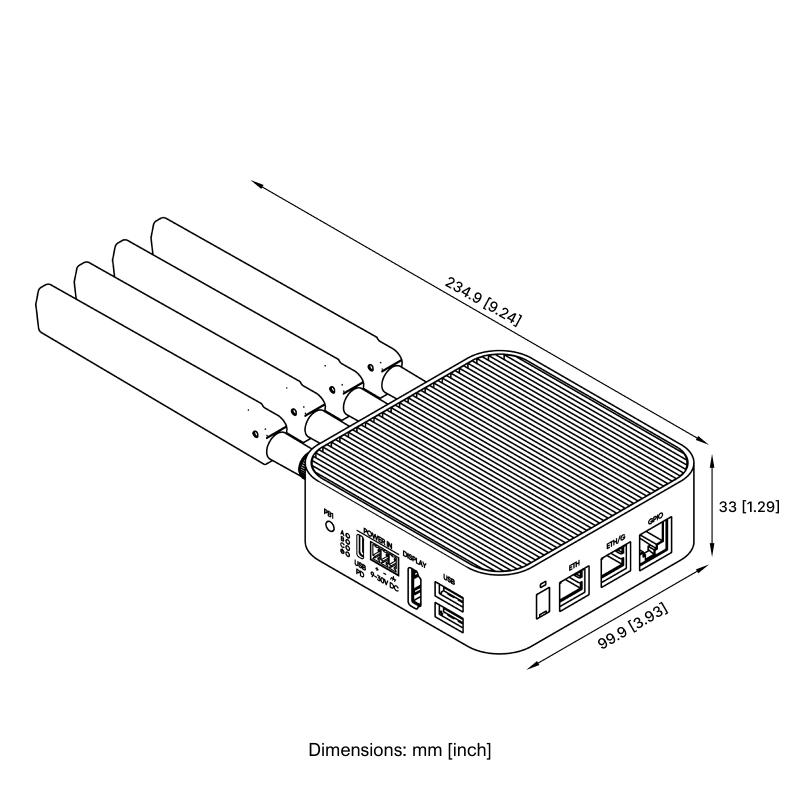

| Dimensions | 111.16 x 99.9 x 33 mm (4.37 x 3.93 x 1.30 in) (Without Antennas) |
| Mounting options | DIN Rail Mount (Optional), Wall Mount (Optional) |
| Network & carrier | PTCRB, Verizon*, AT&T*, T-Mobile*, GCF* |
| Certifications | CE, FCC, IC, UKCA, RoHS, WEEE, REACH, ICASA*, RCM* (*In Progress) |
Customization options for volume orders
| RAM | 2GB, 4GB, 8GB (default) |
|---|---|
| Memory | 8GB, 16GB, 32 GB (default) eMMC Flash |
| Adaptor | USB Type-C (default), Terminal Adaptor |
| Antenna | Low-Profile External (default), IP67 Outdoor Combination |
| PoE | Yes / No (default) |
| Accessories (optional) | DIN Rail Mount Kit, Wall Mount Kit, Port Protection Cover Kit |
Contact sales for product variants assistance.
Optional accessories
- DIN Rail Mount KitSecurely attach the ALPON X4 to a DIN rail using pre-drilled mounting holes, ideal for industrial environments with organized, space-efficient setups.
- Wall Mount KitAffix the ALPON X4 to a wall effortlessly using two mounting holes. Perfect for offices, workshops, or other wall-mounted configurations.
- IP67 Outdoor Combo AntennaMultifunctional antenna supporting LTE, Wi-Fi, and GNSS, suitable for outdoor installations. Rain-resistant but not fully waterproof.
- GPIO ExpansionExpands the ALPON X4's input/output capabilities with additional GPIO pins, enabling custom integrations and advanced applications.
- GPIO Expansion with CableSame functionality as the GPIO Expansion, with included cabling.
- Terminal DC Power AdapterProvides secure, stable wiring connections with screw terminals, tailored for industrial applications.
- Port Protection Cover KitProtects connectors and ports from dust for reliable operation in harsh environments.

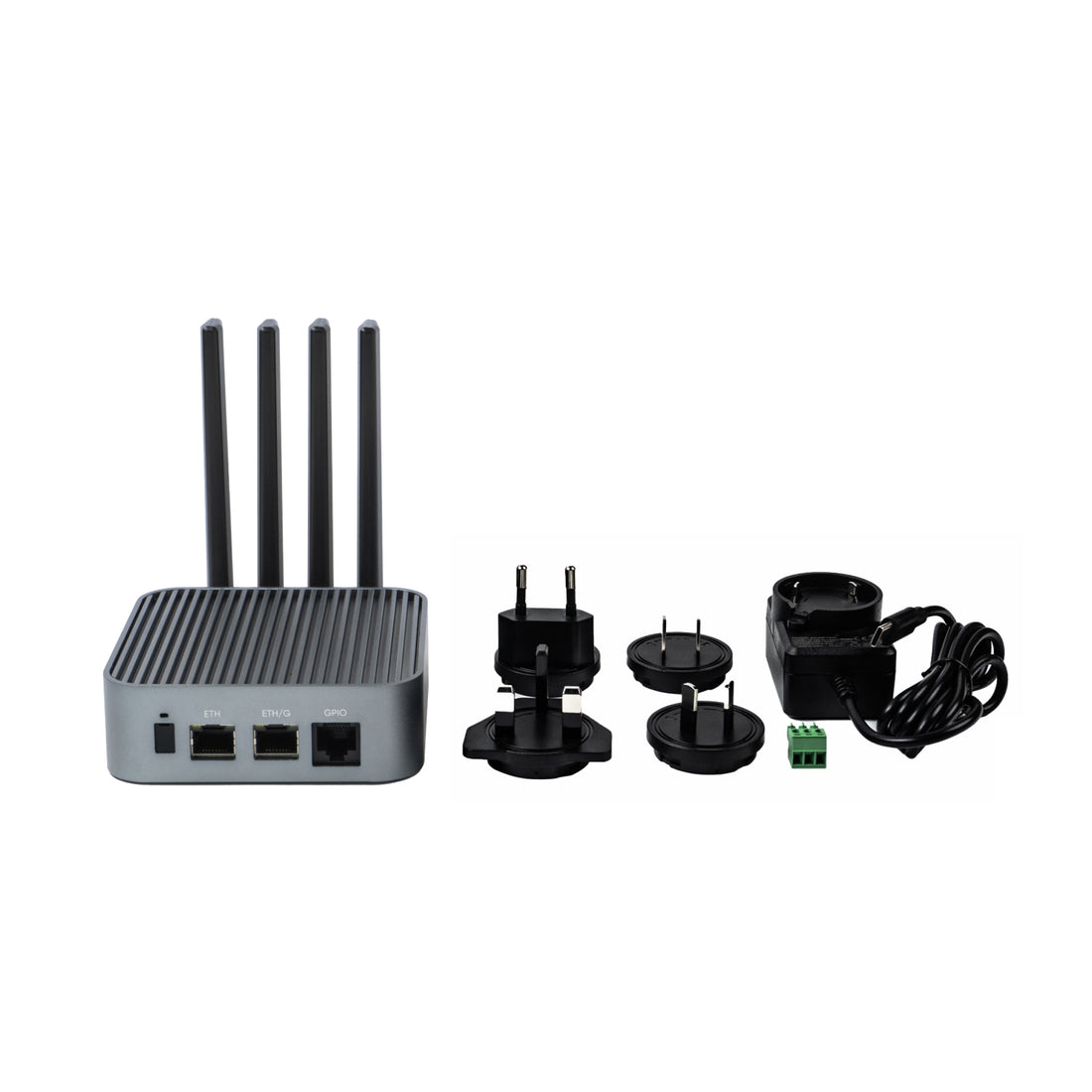

What's in the box
- ALPON X4 Edge Computer×1
- USB-PD Type-C Power Adapters with Universal Plugs×1
- Screw Terminal Male (for Terminal Power Option)×1
