Sixfab IP65 Outdoor Project Enclosure for Raspberry Pi & Development Boards
Request a quote- Ships from Germany in 1–3 business days
- 2-year warranty
- Secure checkout
Description
This enclosure provides environmental protection for IoT projects, with the flexibility to add or remove cable interfaces to your project in seconds. Its IP65-rated lid and grommets protect against dust, rain, and snow.

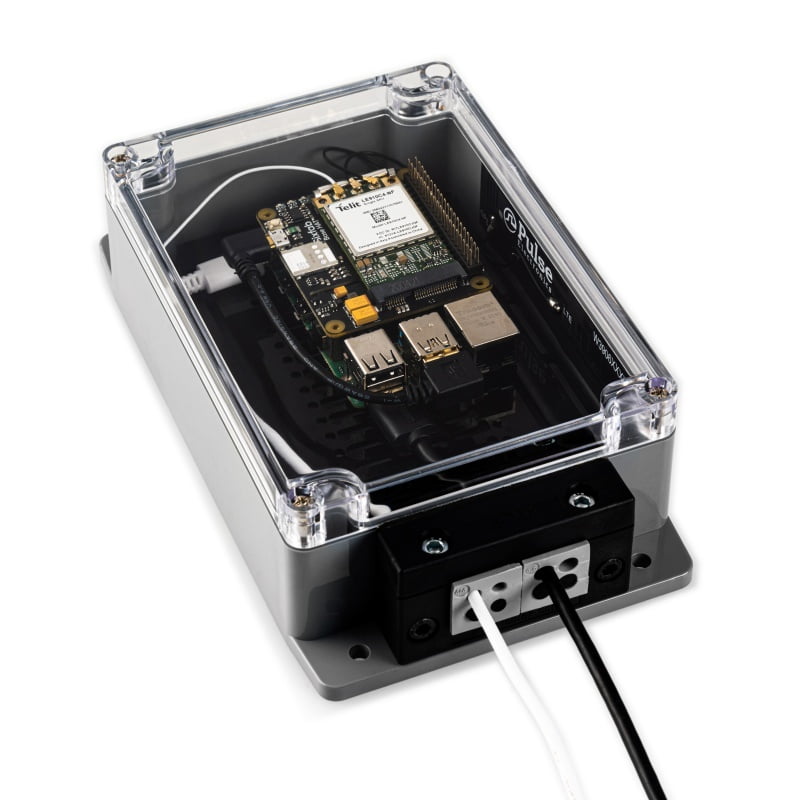

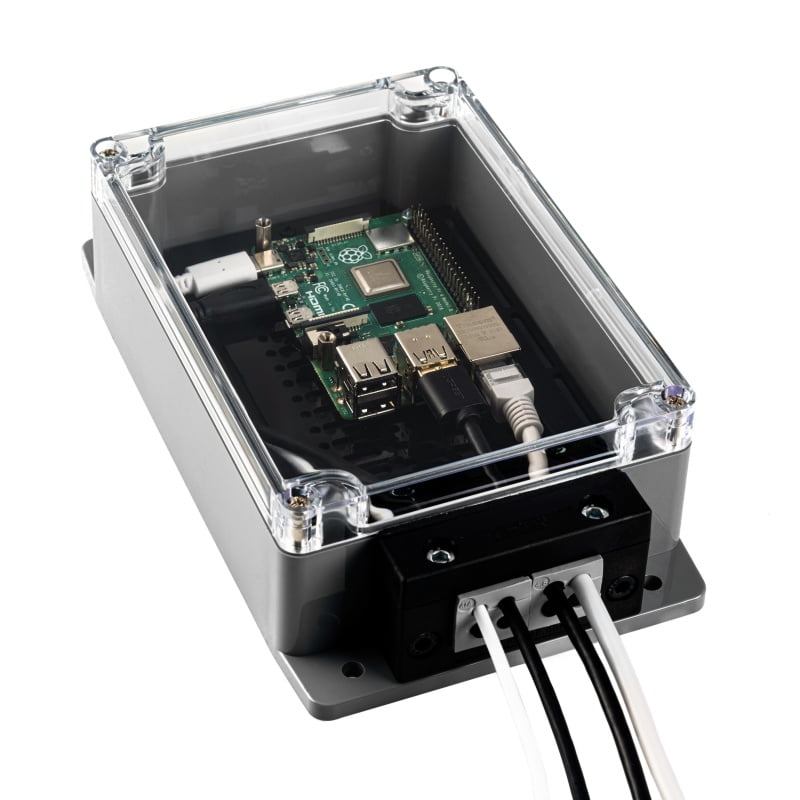

It includes a clear polycarbonate lid, a built-in gasket seal, mounting ears, and four different grommet types for various cable types.
Performance at a glance
- IP-65Dust, rain and snow protection
- 212 × 123 × 60 mmWidth × length × height
- ABSRF-friendly plastic
Highlights
- Simplified ingress protectionA reliable solution for ingress protection, crucial for various IoT project needs, eliminating the need for complex machining.
- Versatile compatibilityWorks with Raspberry Pi, Beaglebone, Tinker Board, and stackable HATs.
- Weatherproof designWater/weatherproof plastic structure protecting from moisture, rain, snow, wind, and dust.
- Easy mountingWall, pole, or custom mounting with the included components.
- Spacious interiorAccommodates batteries, sensors, Raspberry Pi Camera, and electronics, with sealed grommets for varied cable diameters (5 IP65 and 5 IP54 certified cable insert plugs included).
- RF-friendly materialMade from RF-friendly plastic (ABS), allowing antenna placement within the enclosure or external antenna use through grommets.
Technical specifications
| Best for | Outdoor Raspberry Pi projects requiring environmental protection |
|---|---|
| Material | ABS |
| Features | Polycarbonate clear cover with gasket seal · customizable IP-65 cable grommets · wall mount · inner base plate |
| IP rating | IP-65 |
| Application | Outdoor; heavy duty |
| Width | 212 mm |
| Length | 123 mm |
| Height | 60 mm |

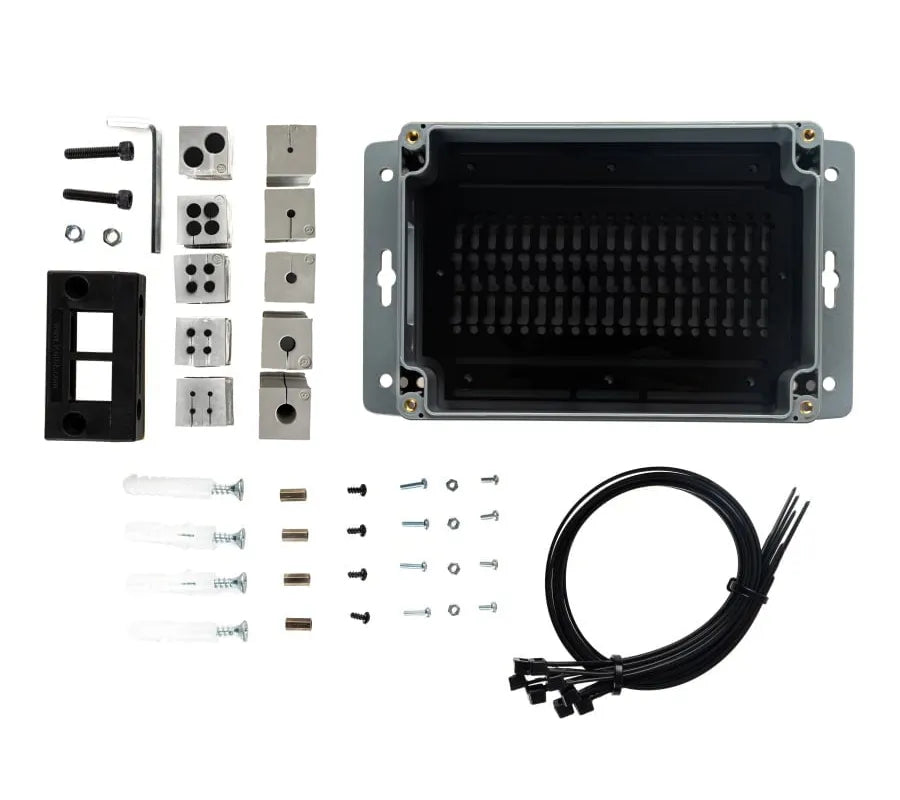

What's in the box
- IP65 Enclosure Case Bottom×1
- Clear Polycarbonate Top Cover×1
- Acrylic PCB Base Plate×1
- IP54 certified cable insert plugs×5
- IP65 certified cable insert plugs×5
- Grommet Frame×1
- Allen Key×1
- Phillips Screwdriver×1
- 400mm Heavy Duty Zip Tie×8
- M2.5x11mm Brass Standoff for board stacking×2
- M2.5 Stainless Steel Flat Washer×8
- M2.5 Stainless Steel Nut×8
- M5x30mm Plastic Expansion Wall Plug with Screw×4
- M4x22mm Screw for top cover×4
- M3x9mm Screw for fixing the base plate to the case bottom×6
- M5x25mm Screw with nuts×2
- M2.5x10mm Screw for fixing Raspberry Pi to the base plate×4
- M2.5x8mm Screw for board stacking×4
This enclosure is not assembled. Raspberry Pi and antennas are not included.
Compatibility
Compatible with
- Raspberry Pi
- Beaglebone
- Tinker Board
- Stackable HATs
