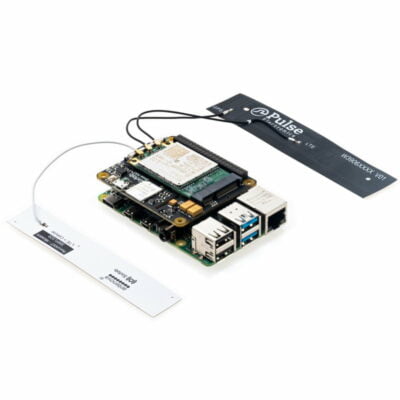

Sixfab 4G/LTE Cellular Modem Kit for Raspberry Pi
Request a quote- Ships from Germany in 1–3 business days
- 2-year warranty
- Secure checkout
Description
This product includes default components for easy connection to 4G networks. With the Raspberry Pi 4G/LTE Modem Kit, your Raspberry Pi based projects will access data networks all around the world.
Designed exclusively for Raspberry Pi, the kit offers seamless 4G LTE network integration on the pre-certified Sixfab Base HAT. With antennas, cables, headers, and spacers, it's ready to connect right out of the box, and the included $25 data credit coupon code requires no commitment.
Performance at a glance
- 150 MbpsMax. DL · 50 Mbps UL
- −25 → +70 °COperating temperature
- 2 module optionsQuectel EG25-G · Telit LE910C4-EU
Highlights
- Simple setupStep-by-step tutorials make connecting easy for everyone.
- High speedHigh-speed. Low latency bring powerful IoT performance.
- Designed for Raspberry PiSeamless network integration & reliable connection - designed for Raspberry Pi 4 & 5.
- Pre-certified carrier boardUtilize the pre-certified Sixfab Base HAT for reliable carrier board support.
- Global or regional dataChoose global or regional data plans to suit your project's needs; the kit includes a $25 data credit coupon code, no commitment required.
Technical specifications
| Best for | Edge computing projects requiring high speeds |
|---|---|
| Regions | Global or Regional |
| Max. data speeds | 150 Mbps (DL) / 50 Mbps (UL) |
| Positioning | GPS, GNSS |
| Electrical | 5V DC, 3.0 A |
| Operating temp | -25 °C to 70 °C |
| Approvals | US: FCC Part 15 Class B · CA: ICES-003 Class B · EU: CE |
| Compliance | RoHS |
| LTE module options | Quectel EG25-G (North America & Global) · Telit LE910C4-EU (EMEA) |

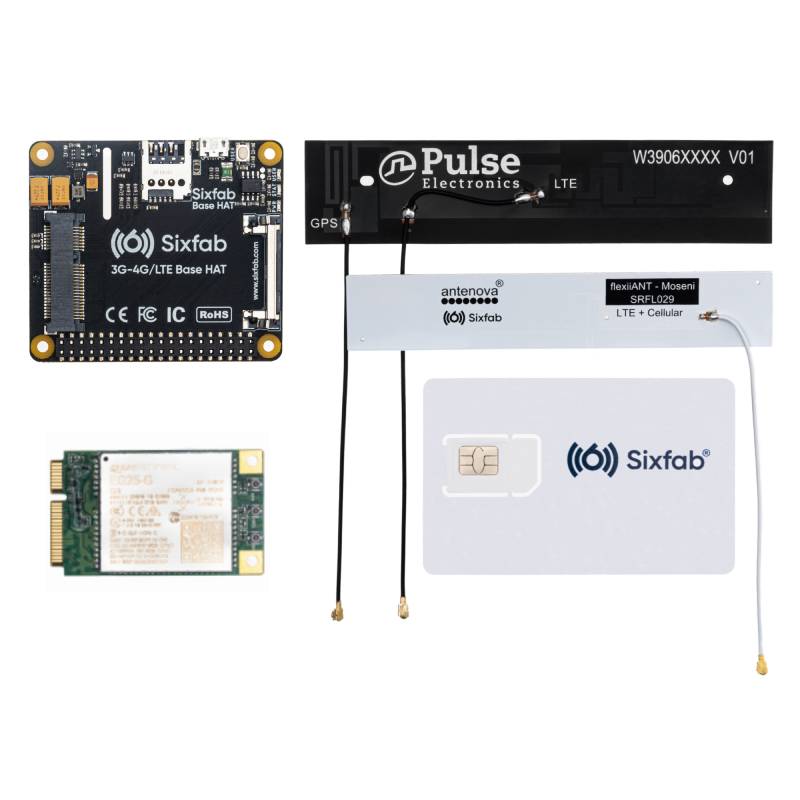

What's in the box
- Sixfab 3G-4G/LTE Base HAT for Raspberry Pi: Sixfab HAT Board, extra tall 40-pin GPIO stacking header, short 40-pin GPIO stacking header, plastic spacer kit×1
- LTE full band PCB antenna u.FL plug - 100mm×1
- LTE - GNSS Dual u.FL Antenna - 100mm×1
- 4G/LTE mini PCIe modem (options available)×1
- Sixfab SIM card with $25 data credit×1
Compatibility
Supported host
- Raspberry Pi 4
- Raspberry Pi 5
Sixfab CORE will be discontinued on December 31, 2025. After this date, users of the Raspberry Pi 4G/LTE Cellular Modem Kit will need to follow the ECM (Ethernet Control Model) tutorial on our website for setting up cellular connectivity without Sixfab CORE.
