ALPON Wall Mount Kit
Request a quote- Ships from Germany in 1–3 business days
- 2-year warranty
- Secure checkout
Description
The Wall Mount Kit is the perfect solution for securely positioning your ALPON X4 device on walls, whether in offices, workshops, or industrial settings. It includes all necessary components for quick installation.
Enjoy a neat and organized setup with this durable and easy-to-install wall mount, ideal for environments where floor or desk space is limited. Specifically designed for the ALPON X4, but also compatible with similar devices using standard mounting configurations.
Highlights
- Versatile installationSuitable for various environments, from offices to rugged industrial spaces.
- Sturdy and reliableEnsures your ALPON X4 remains securely mounted.
- Comprehensive kitIncludes all necessary components for an easy setup.
How to install
- 1Prepare the wallSelect the mounting location and mark the screw positions.
- 2Drill holesCreate holes matching the wall plug size.
- 3Insert wall plugsPush the plastic expansion plugs until flush with the wall.
- 4Align the wall mountPosition the mount over the device mounting holes.
- 5Secure with screwsFasten the mount to the device using the provided screws.
- 6Mount to the wallDrive the screws through the mount into the wall plugs.

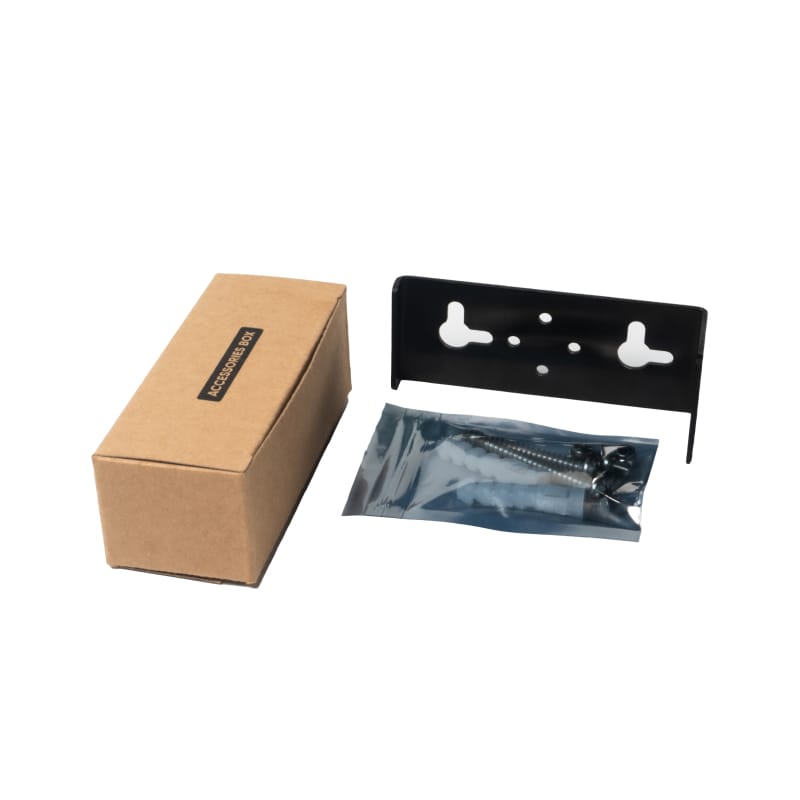

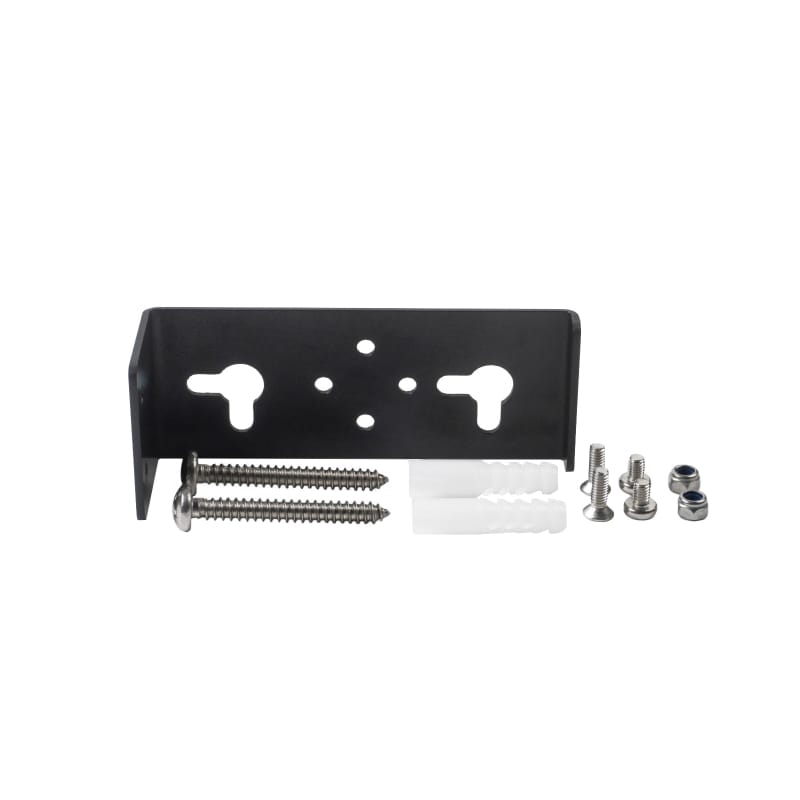

What's in the box
- Wall Mount Bracket×1
- M4x6mm Phillips Pan Head Screws×2
- M4x12mm Phillips Pan Head Screws×2
- M4 Nylon Insert Lock Nut×2
- M5.5x45mm Phillips Pan Head Sheet Metal Screw×2
- 8mm Wall Plug×2
Compatibility
Compatible with
- ALPON X4
- Similar devices using standard mounting configurations
