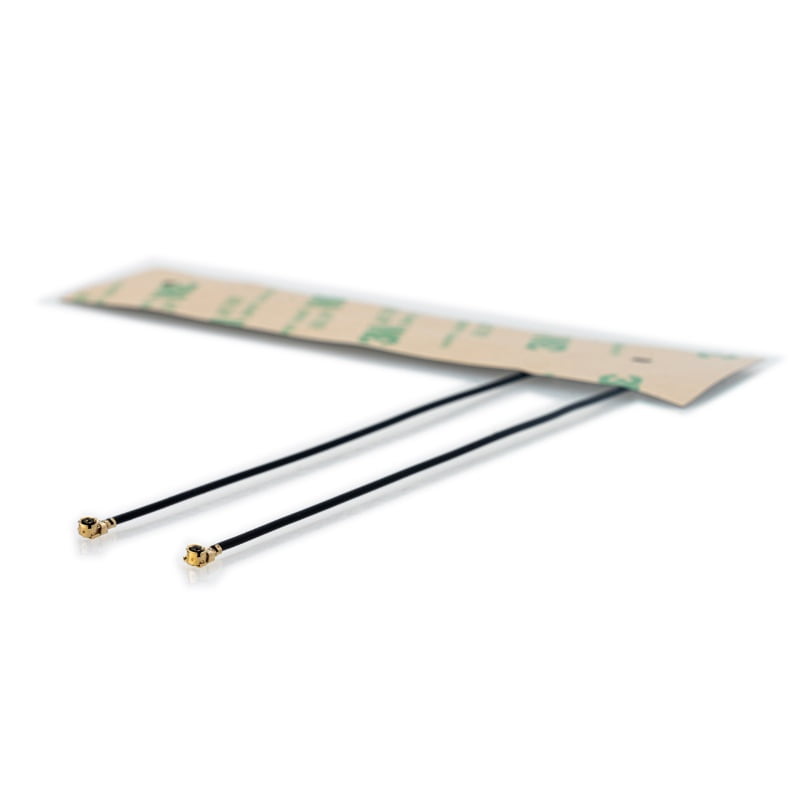

Twin u.FL pigtails of the Sixfab dual antenna, one LTE feed and one GNSS feed, 100 mm cables

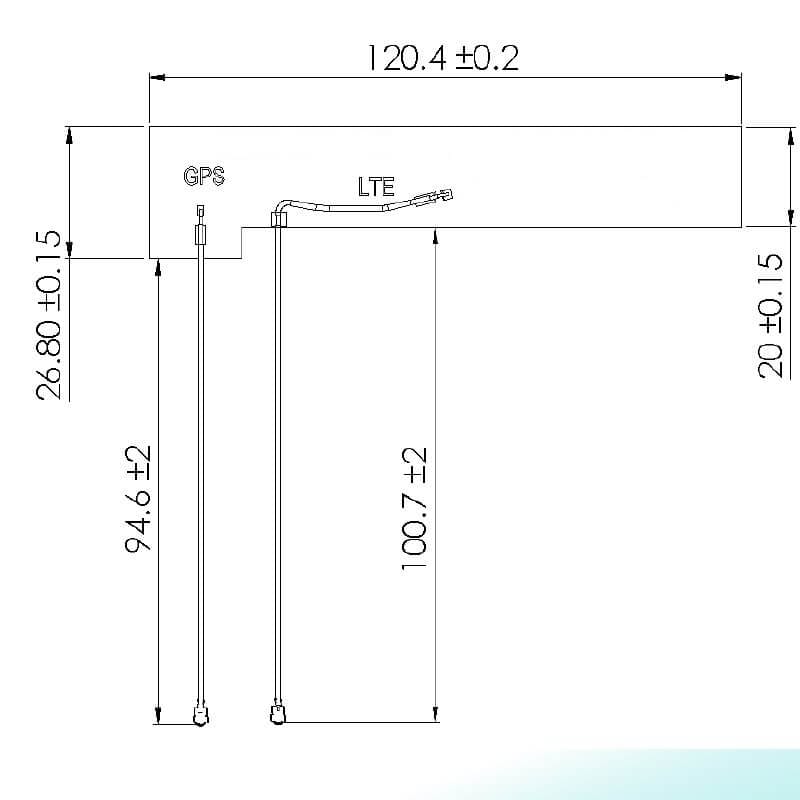

3D render of the Sixfab LTE + GNSS combo antenna pad, 120.4 × 26.80 mm with u.FL connectors

LTE - GNSS Dual u.FL Antenna - 100mm

SKU: S64 In stock
€6,50

Prices excl. VAT · Shipping calculated at checkout · Shipping policy
Request a quote
  • Ships from Germany in 1–3 business days
  • 2-year warranty
  • Secure checkout

Description

This single form antenna consists both primary LTE and GPS antennas.

Highlights

  • 2G/3G/4G coverage
  • Global LTE bands: B1-B23, B25-B29, B33-B42 (North America, Europe and Asia included Japan)
  • Peak gains are between 3.2dBi-4.dBi at the LTE bands (1695-3600 MHz) and 0.8dBi for the GNSS (1570-1610MHz)
  • Adhesive tape

Technical specifications

Frequency 698 – 3600 MHz
Impedance 50 Ω
Dimensions 120.4 x 26.80mm, 100mm Cable Length
Connection u.FL

What's in the box

  • LTE – GNSS Dual u.FL Antenna – 100mm×1
