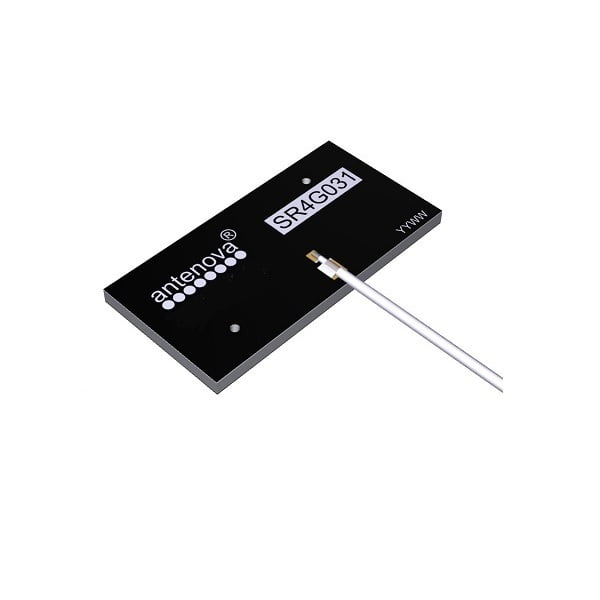

Passive GNSS/GPS antenna (Antenova SR4G031), black 23 × 16 mm PCB with 100 mm cable and u.FL plug

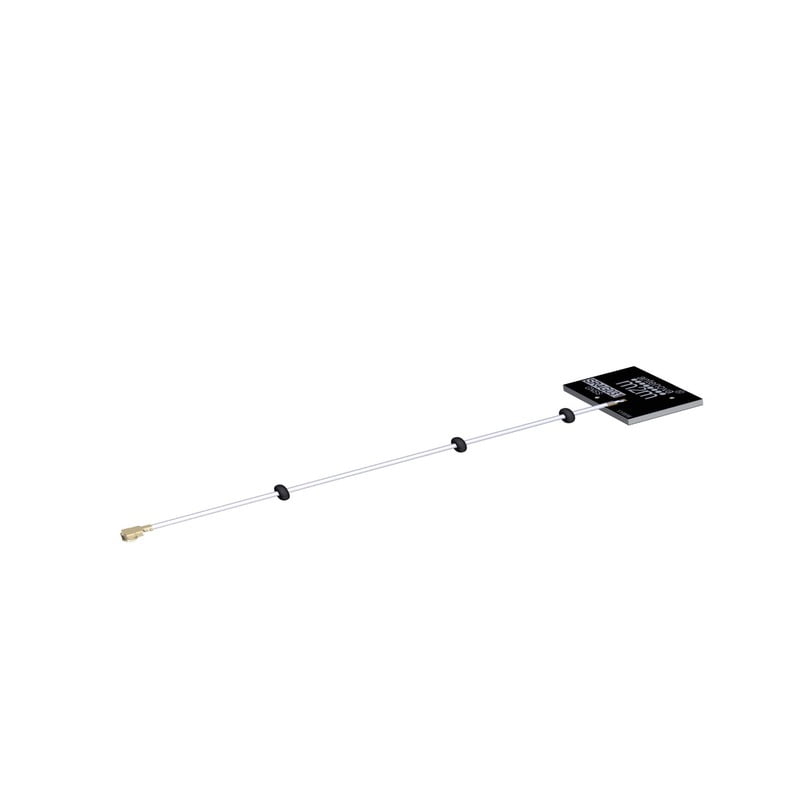

Passive GNSS/GPS antenna with the full 100 mm white cable ending in a gold u.FL plug

Passive GNSS/GPS Antenna u.FL Plug - 100mm

SKU: S146 In stock
€9,90

Prices excl. VAT · Shipping calculated at checkout · Shipping policy
Request a quote
  • Ships from Germany in 1–3 business days
  • 2-year warranty
  • Secure checkout

Description

This passive GNSS/GPS antenna has a self-adhesive mount and a 100 mm cable with u.FL connector.

It fits any GNSS receiver with a u.FL (IPEX MHF) antenna socket, such as the Sixfab Pico LTE 2 and the Quectel EG25/EC25 Mini PCIe module.

Highlights

  • REFLECTOR Technology
  • Antenna for GNSS applications (GPS, GLONASS, BeiDou and Galileo)
  • 1.13 mm diameter RF cable with IPEX MHF connector
  • Self-adhesive mounted (FR4 – 3M 468MP)
  • Minimalist design

Technical specifications

Frequency 1559 – 1609 MHz
Polarization Linear
Impedance 50 Ω
Weight < 0.5 g
Operating temperature -40 °C to +85 °C
Dimensions 23 × 16 × 1.6 mm, 100 mm cable length
Connection u.FL (IPEX MHF)
Compliance RoHS

What's in the box

  • Passive GNSS/GPS Antenna u.FL Plug – 100mm×1
