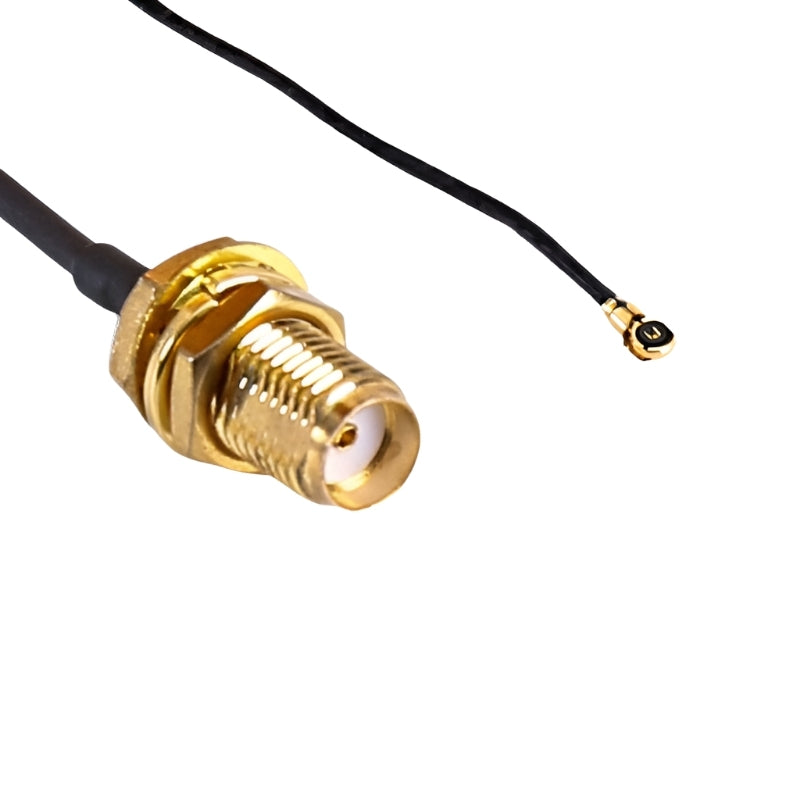

MHF4 to SMA Female Adapter Cable
Request a quote- Ships from Germany in 1–3 business days
- 2-year warranty
- Secure checkout
Description
Compact, low-loss 50 Ω pigtail that adapts an on-board MHF4 RF port to SMA Female connector. Ideal for routing radio modules to external antennas across cellular, Wi-Fi, GNSS and other RF applications up to 7.1 GHz. RoHS compliant.
This cable assembly is built around an MHF4 plug to SMA Female bulkhead interface, using 0.81 mm OD micro-coax for a slim, easily-routed install in space-constrained enclosures. It supports 0–7.1 GHz operation at 50 ± 2 Ω characteristic impedance, with return loss up to −10 dB (max) specified at both the SMA and MHF4 ends. The SMA Female side includes a spring washer for secure panel mounting; the thread length is 11 mm, suitable for a wide range of wall thicknesses. RoHS compliant. Typical uses include connecting embedded radios to external antennas.
Highlights
- Low-loss micro-coax, OD 0.81 mm.
- Frequency range: 0–7.1 GHz
- Impedance: 50 ± 2 Ω
- Return loss (max): −10 dB
- Operating temp: −40 °C to +85 °C
- Panel hardware: spring washer included
- Cable Length: 200mm
- SMA thread length 11 mm
- RoHS compliant
