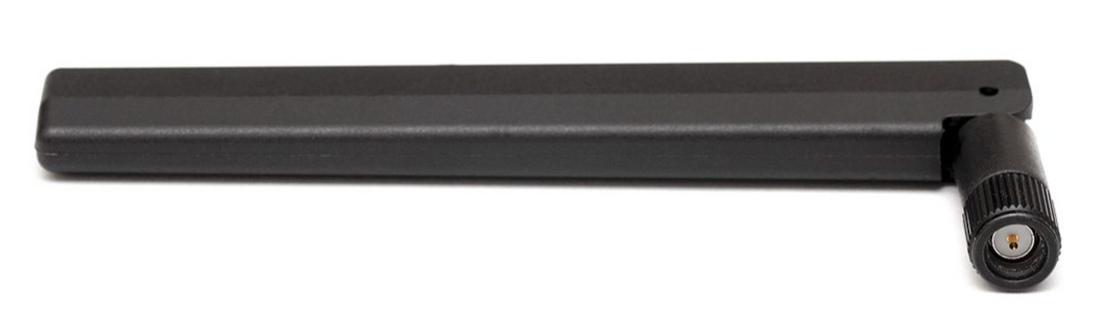

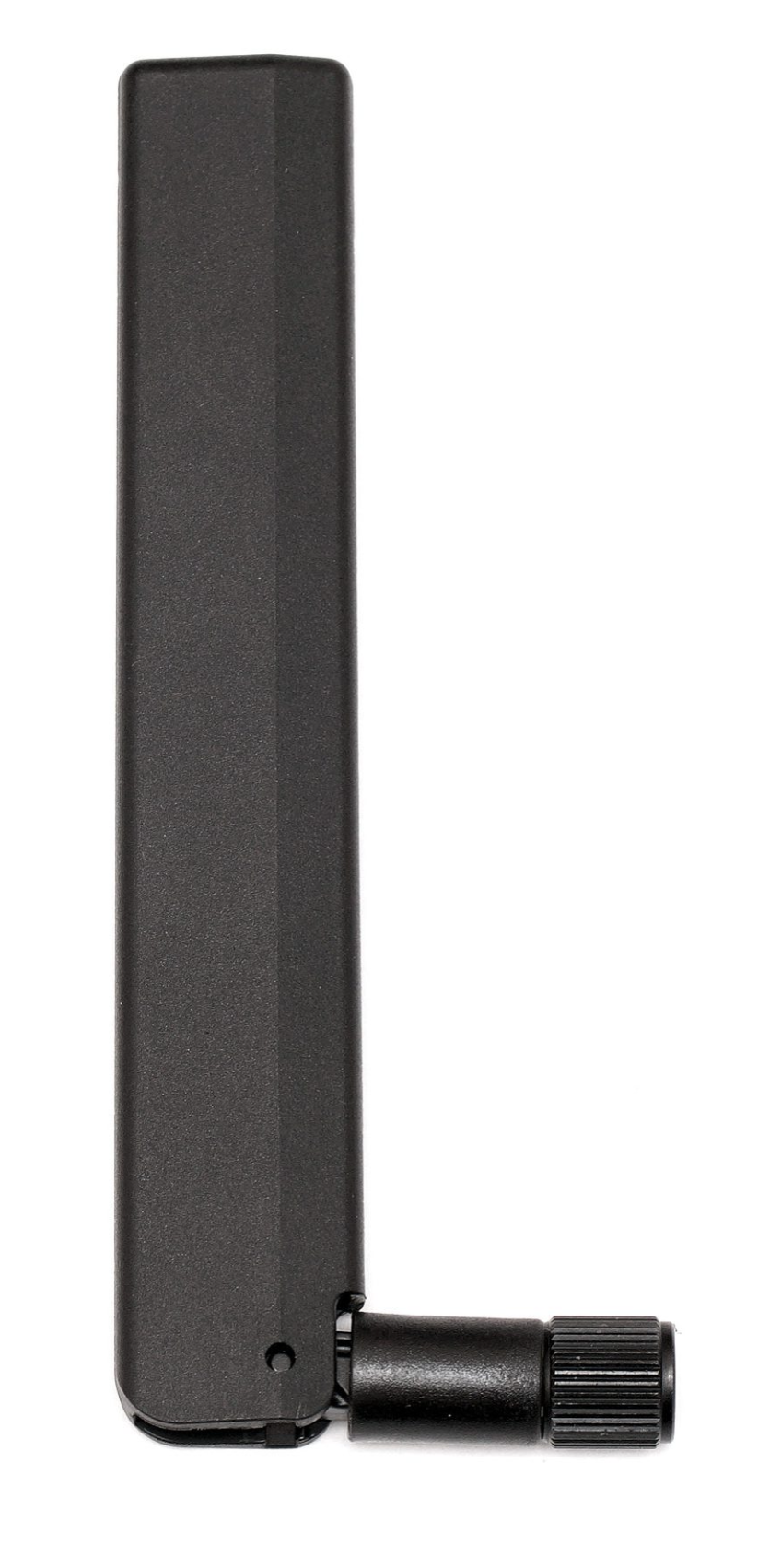

Multi-Constellation GNSS Antenna
Request a quote- Ships from Germany in 1–3 business days
- 2-year warranty
- Secure checkout
Description
This connector-mount antenna is a robust and reliable solution designed to deliver exceptional positioning accuracy across the globe. It operates on primary GNSS frequency bands for broad receiver compatibility.
Built with a durable ASA radome, it functions reliably across extreme temperatures, and its ground plane independent design enables flexible installation.
Performance at a glance
- GPS · GLONASS · BeiDouQZSS · Galileo
- ~2.6 dBiPeak gain · up to ~73.4% efficiency
- −40 → +85 °CASA radome
Highlights
- Universal GNSS compatibilityReceives signals from all major constellations: GPS, GLONASS, BeiDou, QZSS, and Galileo.
- Exceptional signal receptionOutstanding efficiency of up to ~73.4% and a peak gain of ~2.6 dBi.
- Omni-directional patternReceives signals from 360 degrees.

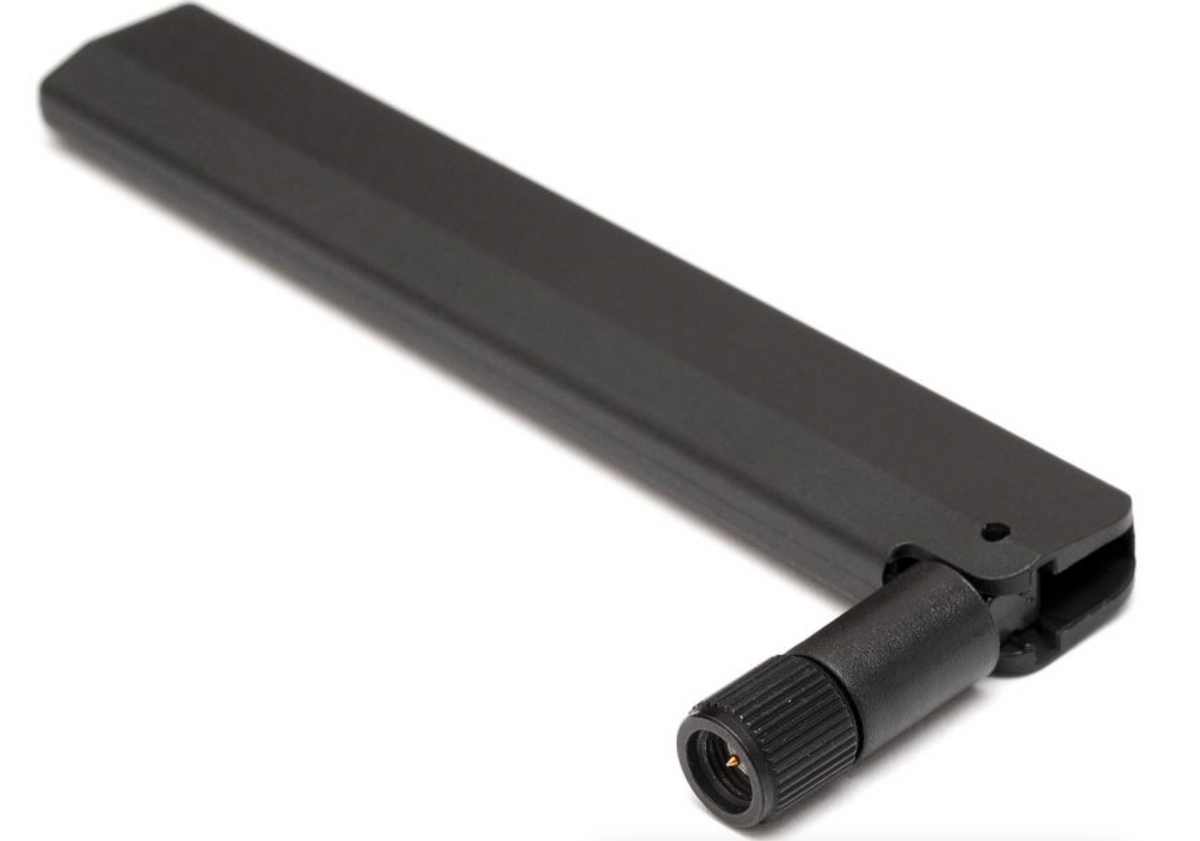

- Flexible hinged connectorStraight (0°), right angle (90°), or 45°.
- Durable constructionBlack ASA radome, -40 °C to +85 °C.
Technical specifications
| Supported standards | GPS, GLONASS, BeiDou, QZSS, Galileo |
|---|---|
| Frequency range | 1561-1606 MHz |
| Peak gain | Up to ~2.6 dBi |
| Efficiency | Up to ~73.4% |
| VSWR | ≤ ~1.4:1 |
| Polarization | Linear |
| Impedance | 50 Ohm |
| Max input power | 25 Watts |
| Connector | SMA-Male |
| Mounting type | Direct Connector Mount |
| Radome material | ASA |
| Operating temp | -40 °C to +85 °C |
| Dimensions | Straight: 135 mm × 19 mm × 10 mm · Right angle: 110 mm (H) × 42 mm (L) |
