Sixfab 4G/LTE Cellular Modem Kit for NVIDIA Jetson Nano DevKit
Request a quote- Ships from Germany in 1–3 business days
- 2-year warranty
- Secure checkout
Description
NVIDIA® Jetson Nano™ Developer Kit is an affordable & powerful computer for running multiple neural networks in parallel. The Sixfab 4G/LTE Cellular Modem Kit connects your AI projects to the internet in real time by adding cellular connectivity to your machine learning models.

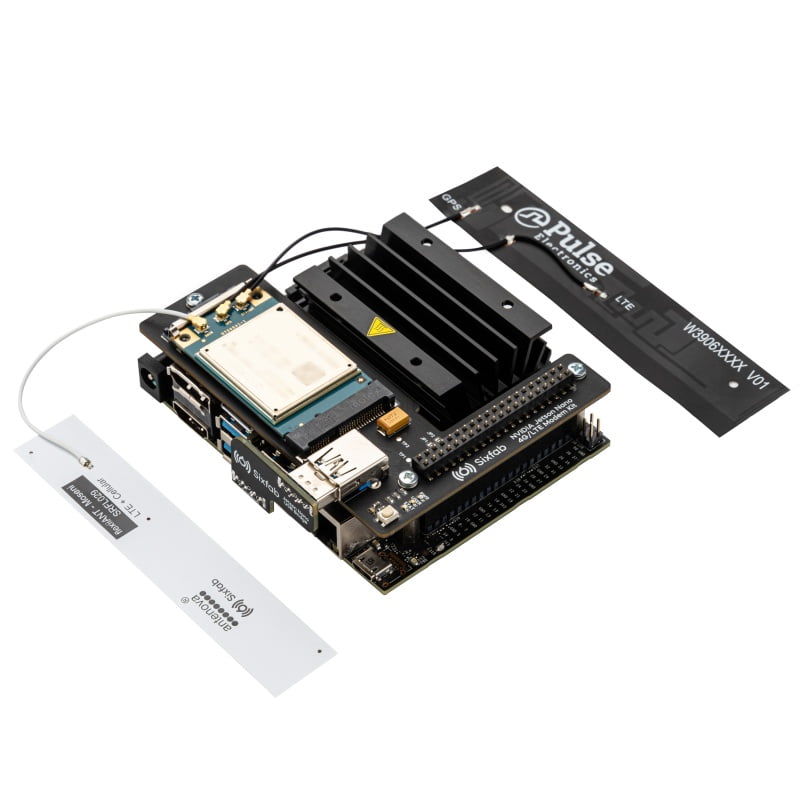

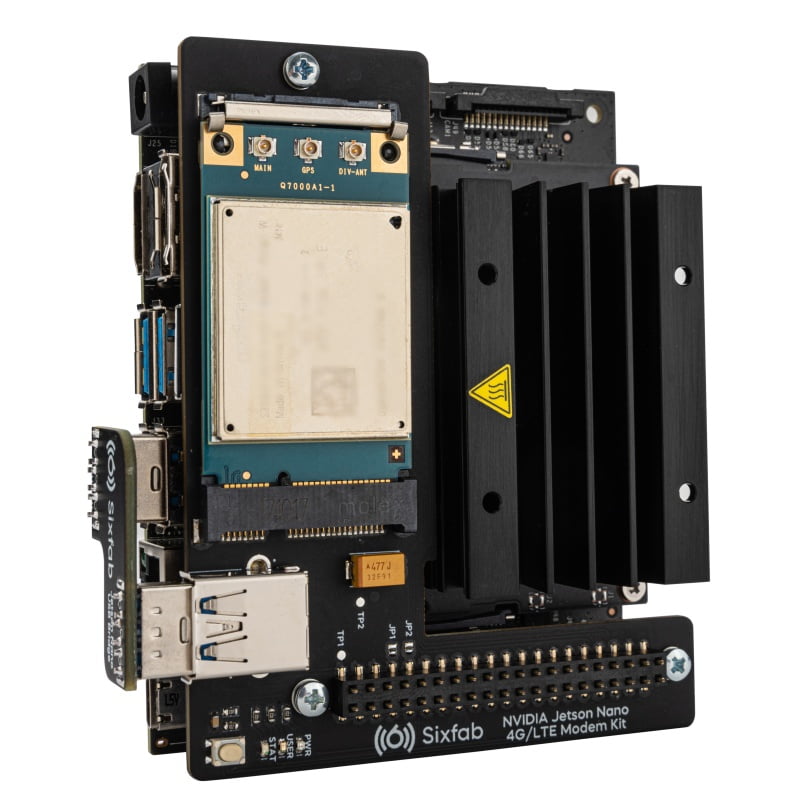

An all-in-one connectivity kit designed for the NVIDIA® Jetson Nano™ Developer Kit, with a compact design and special USB connector. Development friendly and modification-ready, the HAT can also be used via USB cables as a standalone dongle.
Performance at a glance
- LTE Cat 4150 Mbps DL / 50 Mbps UL
- Quectel EG25-GGlobal Mini PCIe module
- GNSSGPS / BeiDou / GLONASS / Galileo
Highlights
- Designed for Jetson NanoDesigned for the NVIDIA® Jetson Nano™ Developer Kit - compact design with special USB connector.
- All-in-one connectivity kitDevelopment friendly hardware, modification-ready.
- Standalone dongleThe HAT can be used via USB cables as a standalone dongle.
- IoT SIMGlobal or regional coverage options · $25 data credit coupon code included in the kit.
Technical specifications
| High-speed CAT 4 mini PCIe module | |
|---|---|
| LTE Cat 4 | LTE-FDD: 1, 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20, 26, 28, 66 · LTE-TDD: 38, 40, 41 |
| WCDMA | 1, 2, 3, 4, 5, 6, 8, 19 |
| GSM | 850, 900, 1800, 1900 MHz |
| FDD-LTE Cat 4 performance | Downlink max. 150 Mbps · Uplink max. 50 Mbps |
| GNSS | GPS/BeiDou/GLONASS/Galileo |
| Antenna | U.FL onboard connectors for GNSS, Main and RX-Diversity antennas |
| Region | Global |
| Regulatory | RED, GCF, CE, FCC, PTCRB, IC, UL, CCC, IFETEL, UKCA, Anatel, JATE, TELEC |

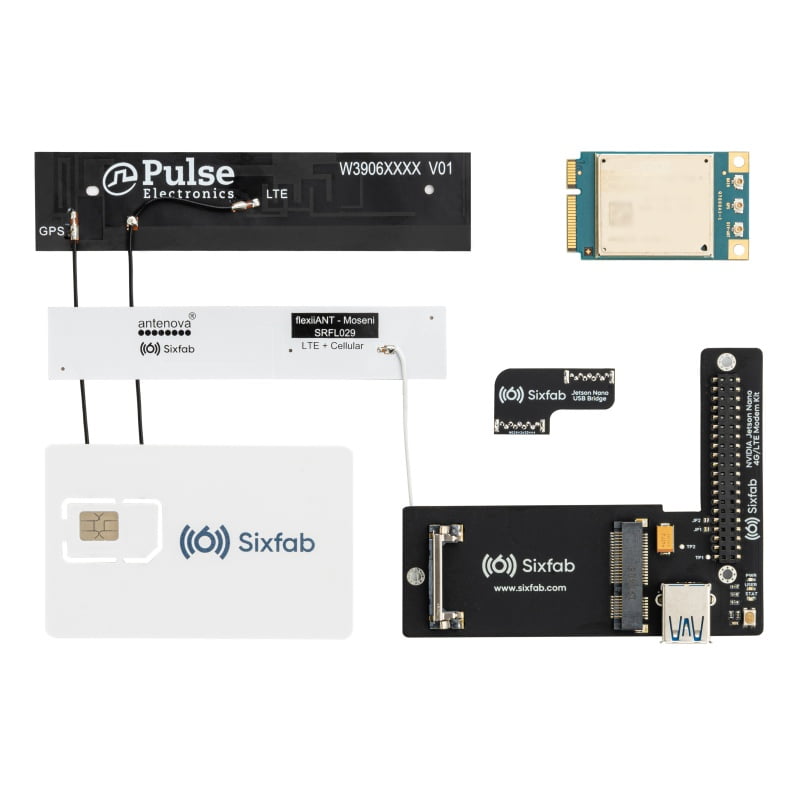

What's in the box
- Sixfab Jetson Nano Base HAT×1
- 40-pin GPIO stacking header×1

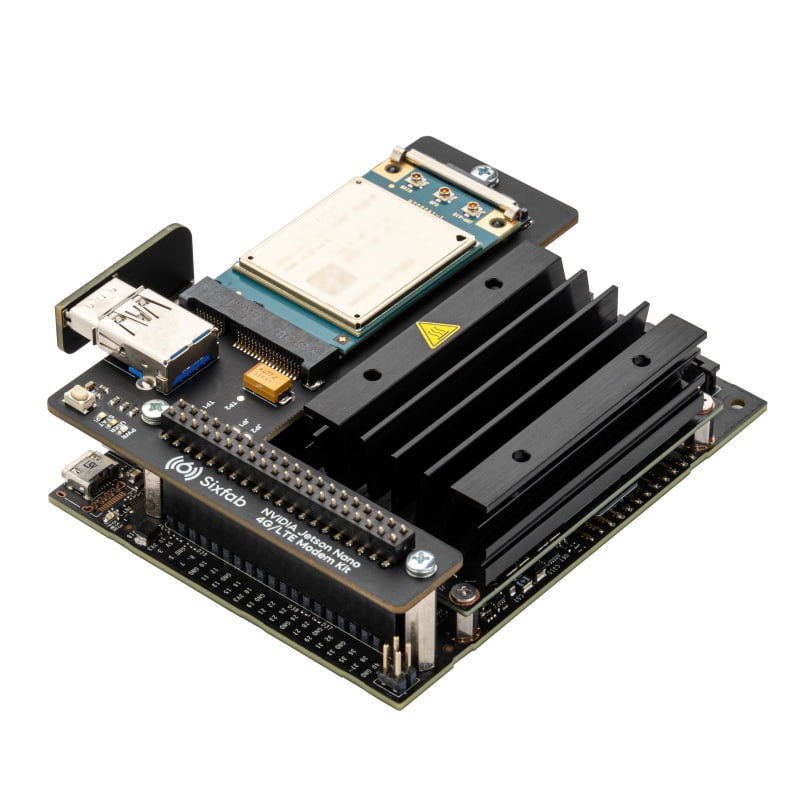

- USB 2.0 Bridge Connector between Jetson Nano and HAT×1
- M2 Screws and Standoff1 set
- LTE Full Band PCB Antenna - u.FL Plug - 100mm×1
- LTE - GNSS Dual u.FL Antenna - 100mm×1
- Quectel EG25-G (Global) Mini PCIe 4G/LTE Module×1
- Sixfab SIM card with $25 data credit Token×1
Compatibility
Supported host
- NVIDIA Jetson Nano Developer Kit
The USB Bridge for Jetson Orin Nano is now available in our store - recommended for users planning to use the Jetson Nano Cellular Modem Kit with the Jetson Orin Nano Developer Kit.
