Quectel EM05-G LTE Cat 4 M.2 Module Bundle
Request a quote- Ships from Germany in 1–3 business days
- 2-year warranty
- Secure checkout
Description
An LTE Cat 4 IoT module purpose-built for global M2M and industrial deployments, bundled with antennas and a Sixfab SIM card. Broad LTE coverage, mature drivers, and industrial-grade temperature in the standard M.2 form factor.
- 22 LTE bands + WCDMA fallback
- Multi-constellation GNSS
- Industrial temperature range
- Antennas and Sixfab SIM card included
Technical specifications
EM05G, the GNSS-enabled global variant. Refer to Quectel's official datasheet for AT command reference and mechanical drawings.
| Best for | LTE Cat 4 IoT / Edge AI applications |
|---|---|
| Regions | Global |
| Max. data speeds |
LTE-FDD: DL 150 Mbps / UL 50 Mbps LTE-TDD: DL 130 Mbps / UL 30 Mbps DC-HSDPA: DL 42 Mbps HSUPA: UL 5.76 Mbps WCDMA: DL / UL 384 kbps |
| LTE bands |
FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B25, B26, B28, B66, B71 TDD: B38, B39, B40, B41 |
| 3G bands | WCDMA / DC-HSDPA / HSPA+: B1, B2, B4, B5, B6, B8, B19 |
| Voice / SMS | Data only (no voice) · SMS supported |
| Protocols | TCP, UDP, PPP, FTP, HTTP, NTP, PING, QMI, NITZ, SMTP, MMS, FTPS, SMTPS, SSL, FILE |
| Positioning | GPS, GLONASS, BeiDou (BDS), Galileo, QZSS |
| Antennas | Main, Rx-diversity / GNSS |
| Power consumption | 5 μA @ Power off · 3.3 mA @ LTE sleep (PF=128) · 20 mA @ Idle |
| Operating temperature | −30°C to +70°C |
| Dimensions | 30.0 × 42.0 × 2.3 mm |
| Form factor | M.2 |
| Regulatory | SRRC, NAL, CCC, GCF, CE, PTCRB, FCC, UKCA, IC, Anatel, KC, NCC, JATE, TELEC, RCM, NBTC, IMDA, ICASA |
| Carrier certification |
Europe: Vodafone, Swisscom, EE America: Verizon, AT&T, T-Mobile China: China Telecom, China Mobile, China Unicom Japan: NTT DOCOMO, SoftBank, KDDI Australia: Telstra |
| Compliance | WHQL, RoHS |
Built for production IoT at global scale
LTE Cat 4 throughput across 22 cellular bands with WCDMA / HSPA+ fallback. Multi-constellation GNSS, industrial temperature range, and mature multi-OS driver support, all in a 30 × 42 × 2.3 mm M.2 footprint.
- 150 / 50 Mbps LTE-FDD DL / ULTheoretical peak. Cat 4 sized for telematics, video upload, POS, and remote management.
- 22 LTE Bands FDD + TDD coverage18 LTE-FDD bands plus 4 LTE-TDD bands. WCDMA / DC-HSDPA / HSPA+ fallback on 7 bands.
- 5 GNSS Systems Multi-ConstellationGPS, GLONASS, BeiDou, Galileo, QZSS. Included on this SKU (EM05G).
- −30 to +70°C Operating RangeIndustrial temperature range for outdoor cabinets, vehicles, and cold-chain enclosures.
Important notes before you specify
- Data only. No voice support.
- No built-in SIM card slot. The SIM slot must be provided by the host board. eSIM (eUICC) is also supported.
- No PCIe interface. Host integration is over USB 2.0 only.
What's in the box

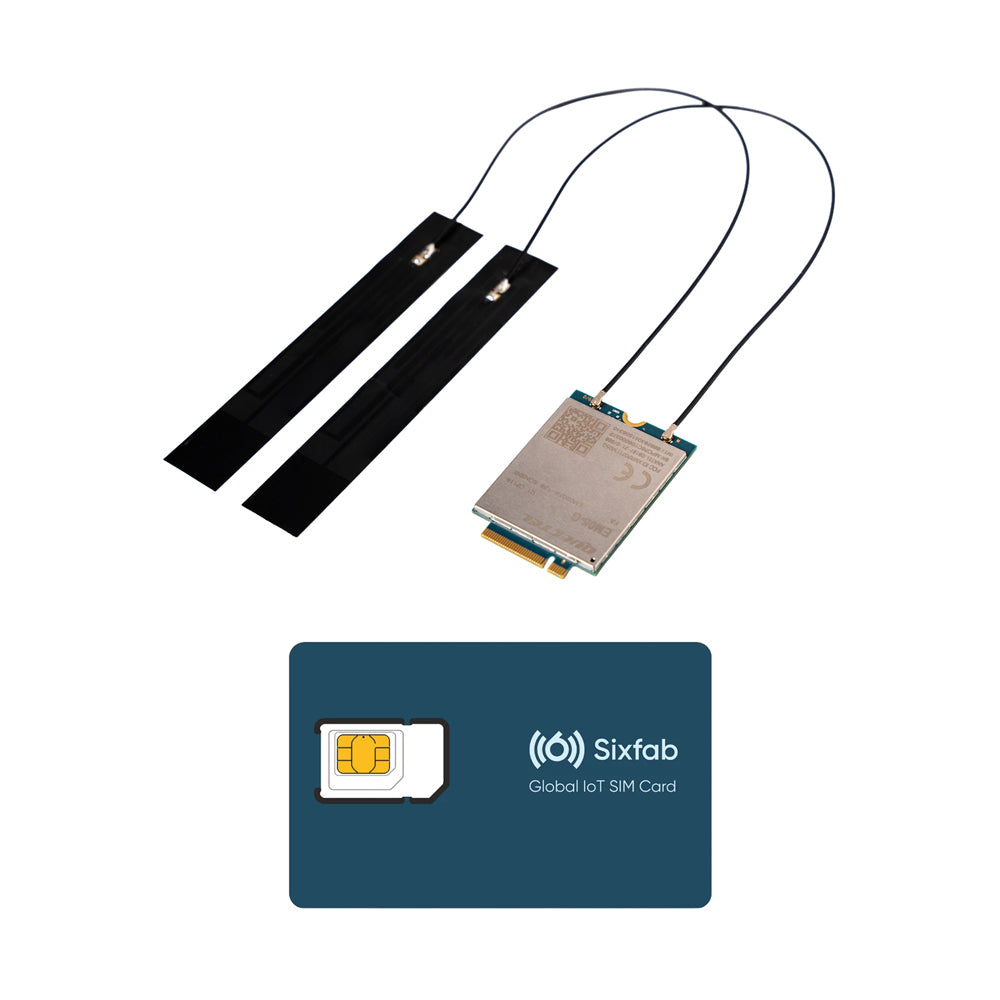

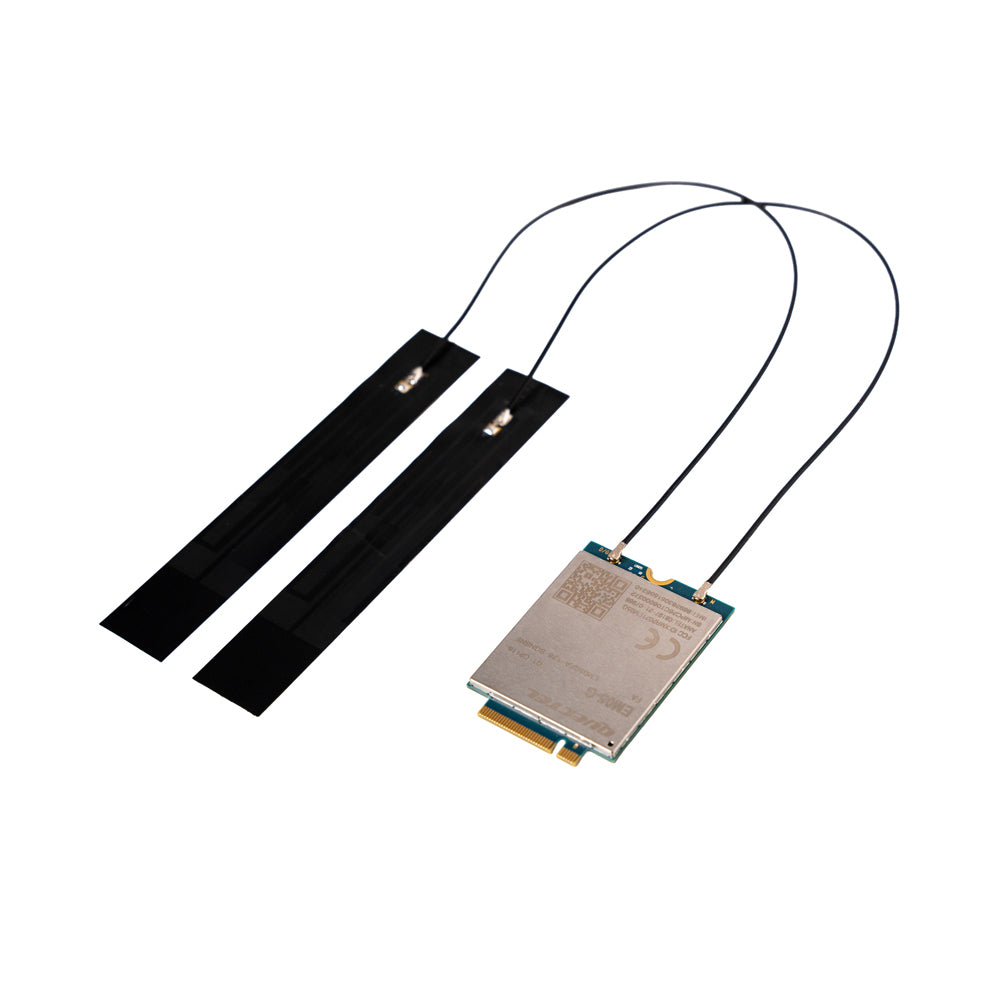

This bundle ships with everything needed to get the module on the air: the Quectel EM05-G LTE Cat 4 M.2 (NGFF) module, the matching antennas, and a Sixfab SIM card. A host carrier board with an M.2 (Key B) slot and SIM holder is sourced separately.

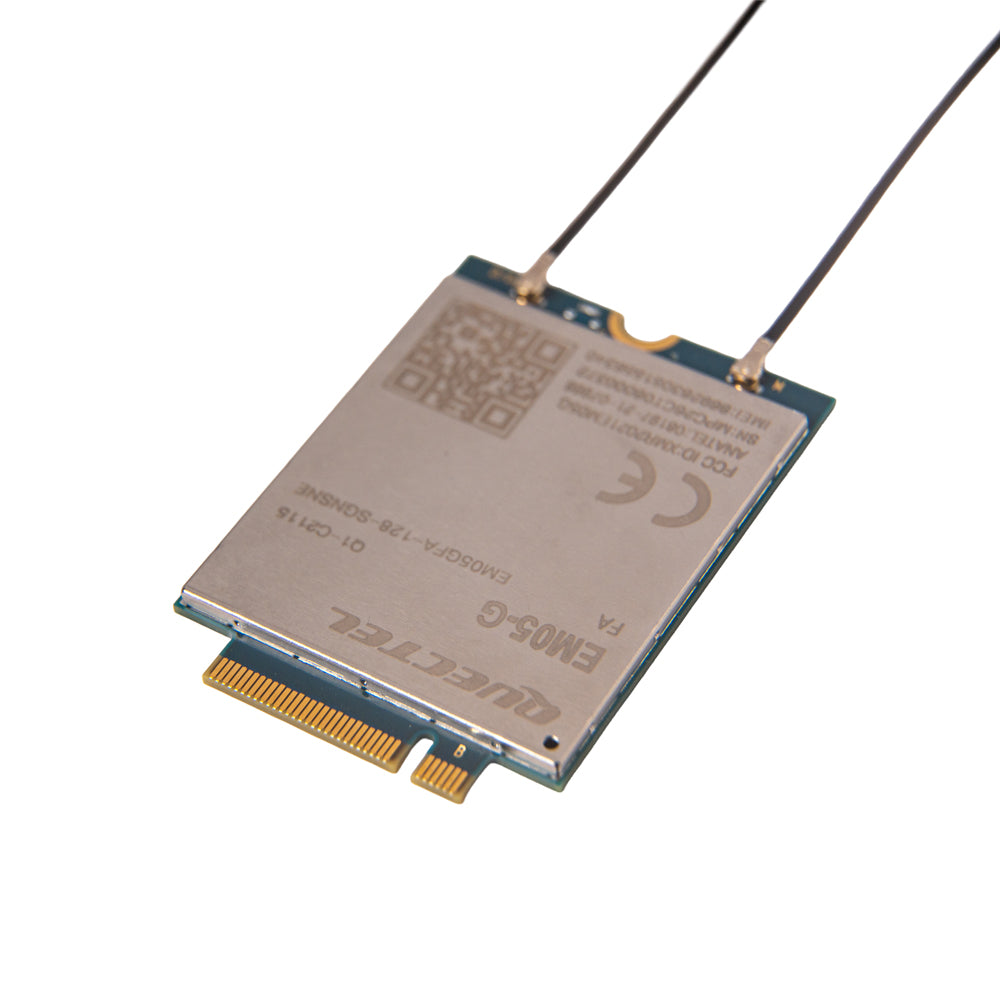

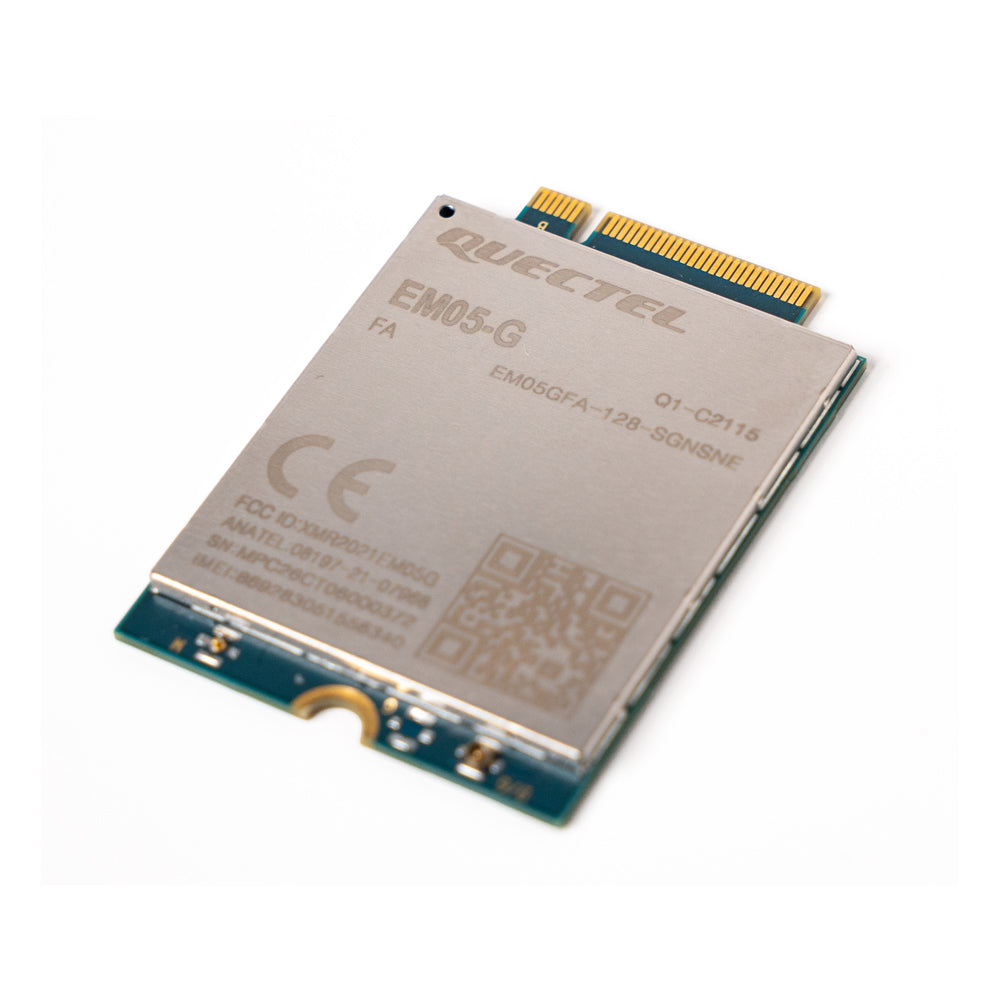

- Quectel EM05-G Global LTE Cat 4 M.2 Module (Article No. EM05G, GNSS-enabled variant)×1

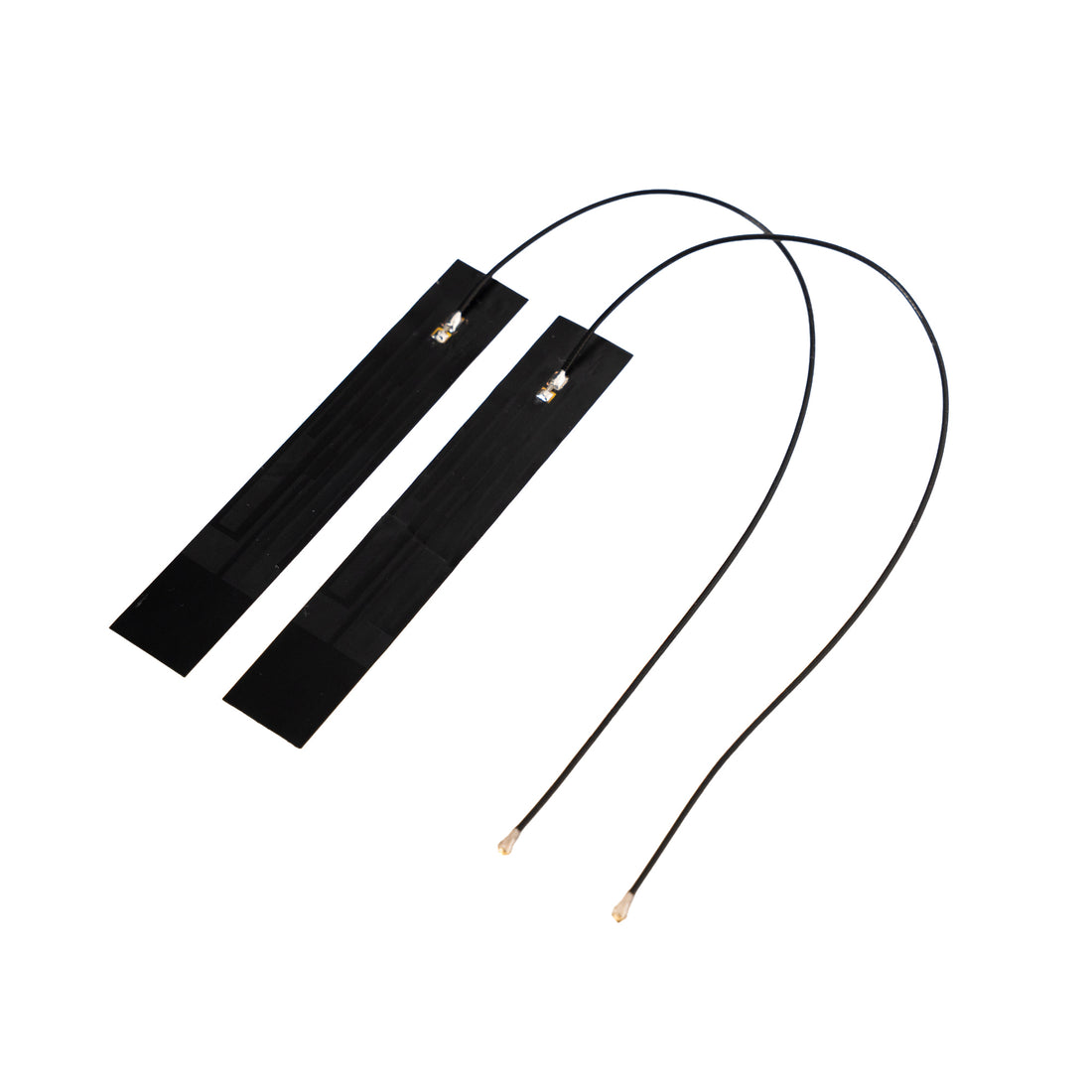

- Antennas×2
- Sixfab SIM Card×1
