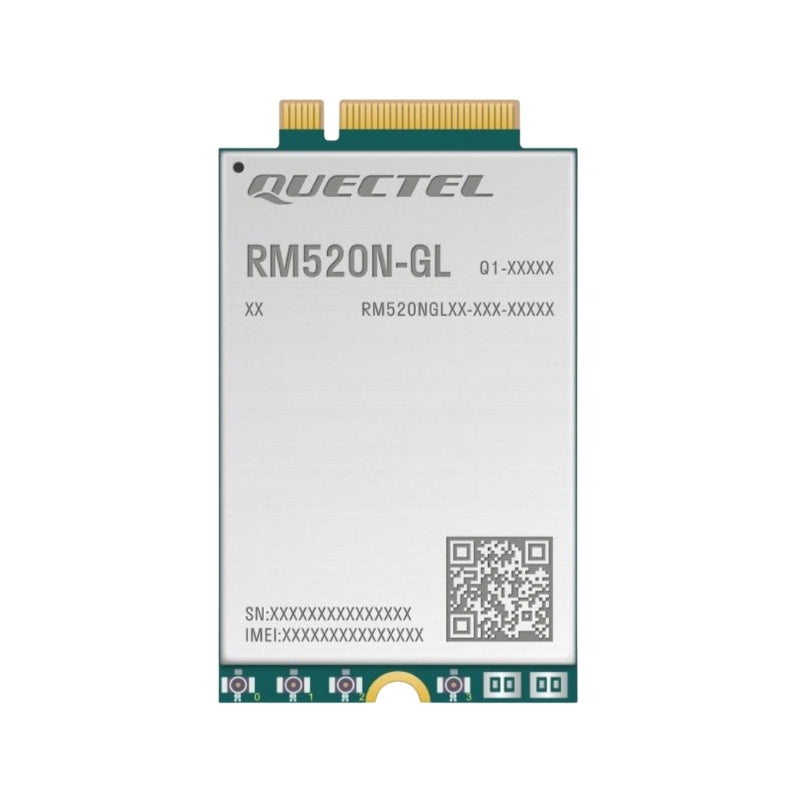

Quectel RM520N-GL 5G Module
Request a quote- Ships from Germany in 1–3 business days
- 2-year warranty
- Secure checkout
Description
The Quectel RM520N-GL is a cutting-edge 5G IoT module optimized for industrial and commercial applications, in an M.2 form factor. It supports both 5G NSA and SA modes and provides global band coverage.
One module for the world: comprehensive 5G NR (NSA/SA), LTE-FDD, LTE-TDD, and WCDMA bands, 3GPP Release 16, and an integrated multi-constellation GNSS receiver. Pin-to-pin compatible with Quectel's RM502Q-AE (5G) modules for easy migration.
Performance at a glance
- 5G SA2.4 Gbps DL / 900 Mbps UL
- 5G NSA3.4 Gbps DL / 550 Mbps UL
- LTE1.6 Gbps DL / 200 Mbps UL
Highlights
- Global connectivitySupports comprehensive 5G NR (NSA/SA), LTE-FDD, LTE-TDD, and WCDMA bands.
- 3GPP Release 16Latest 5G enhancements for efficiency and coverage.
- Precision GNSSIntegrated multi-constellation receiver (GPS, GLONASS, BDS, Galileo, QZSS).
- Versatile interfacesUSB 3.1/3.0/2.0 and PCIe 3.0.
- Industrial grade-40 °C to +85 °C operation range.
- Easy migrationPin-to-pin compatible with Quectel's RM502Q-AE (5G) modules.
Technical specifications
| Best for | 5G IoT/eMBB applications |
|---|---|
| Regions | Global |
| 5G NR bands (NSA/SA) | n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/79 |
| LTE bands FDD | B1-B5, B7, B8, B12-B14, B17-B20, B25, B26, B28-B30, B32, B66, B71 |
| LTE bands TDD | B34, B38-B43, B46 (LAA), B48 |
| Positioning | GPS, GNSS, BDS, Galileo, QZSS |
| Electrical | 3.135-4.4 V, typical 3.7 V |
| Operating temp | -30 °C to +75 °C · -40 °C to +85 °C (Extended) |
| Dimensions | 30.0 × 52.0 × 2.3 mm |
| Regulatory | CCC, GCF, CE, PTCRB, FCC, IC, Anatel, KC, NCC, JATE, TELEC, RCM, ANRT, CoC, NTRA, SRRC, NAL, UKCA |
| Compliance | RoHS |
| Carrier certifications | America: Verizon/AT&T/T-Mobile · Australia: Telstra |
Important notes
- No built-in SIM card slot; external connection required

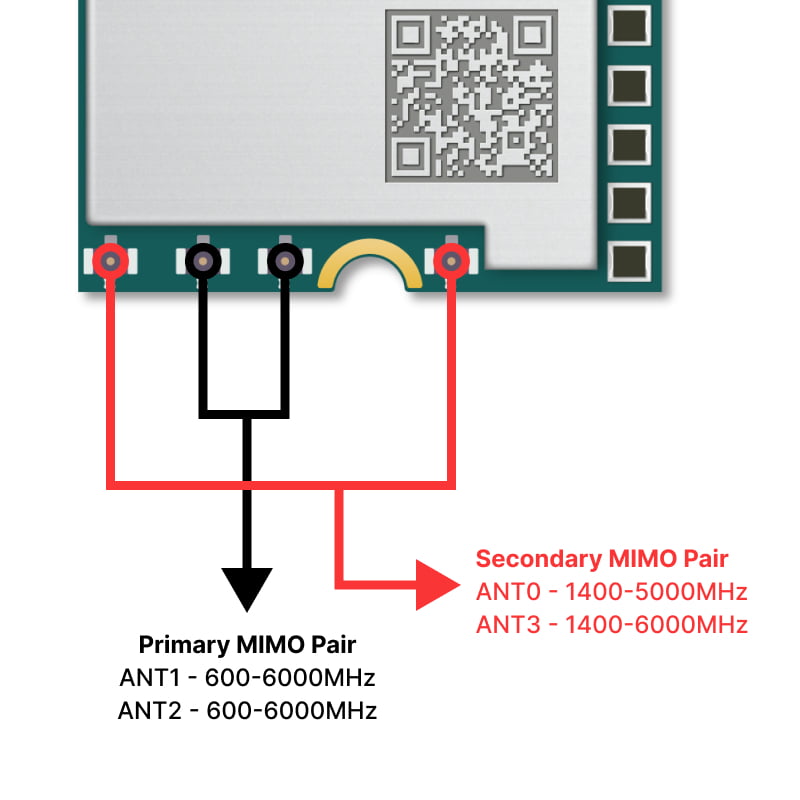

- Antennas sold separately; MHF4 socket antennas/cables required
- Sub-6 only; no millimeter-wave support
- Heatsink recommended for cooling
- Additional certification may be needed for Verizon/AT&T integration
What's in the box
- Quectel RM520N-GL 5G Sub-6 M.2 Module×1
