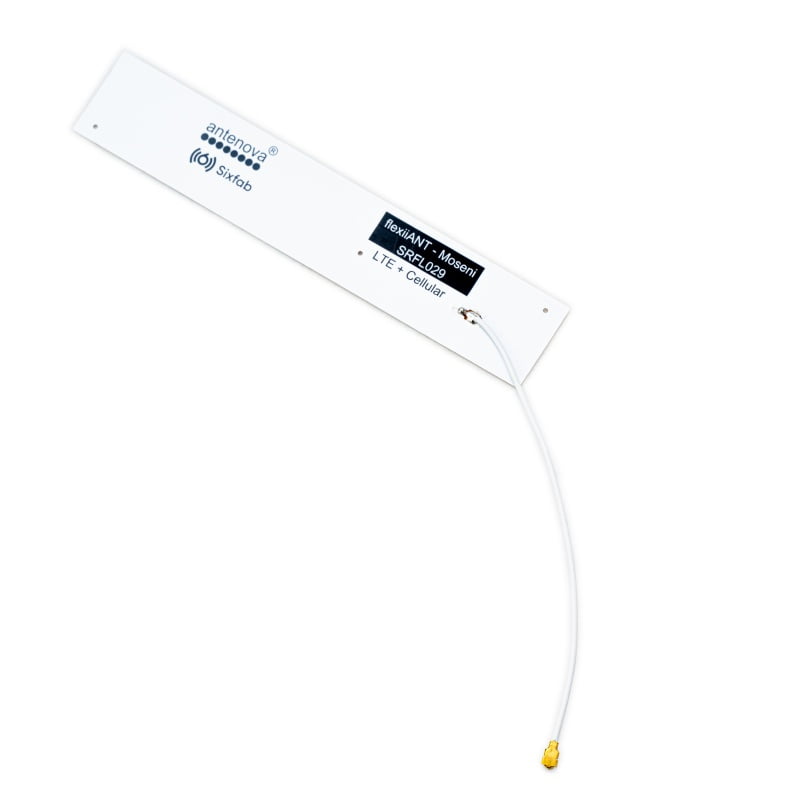

LTE Full-Band PCB Antenna u.FL Plug 100mm (Sixfab S77), internal FPC cellular antenna with u.FL pigtail and 3M self-adhesive backing

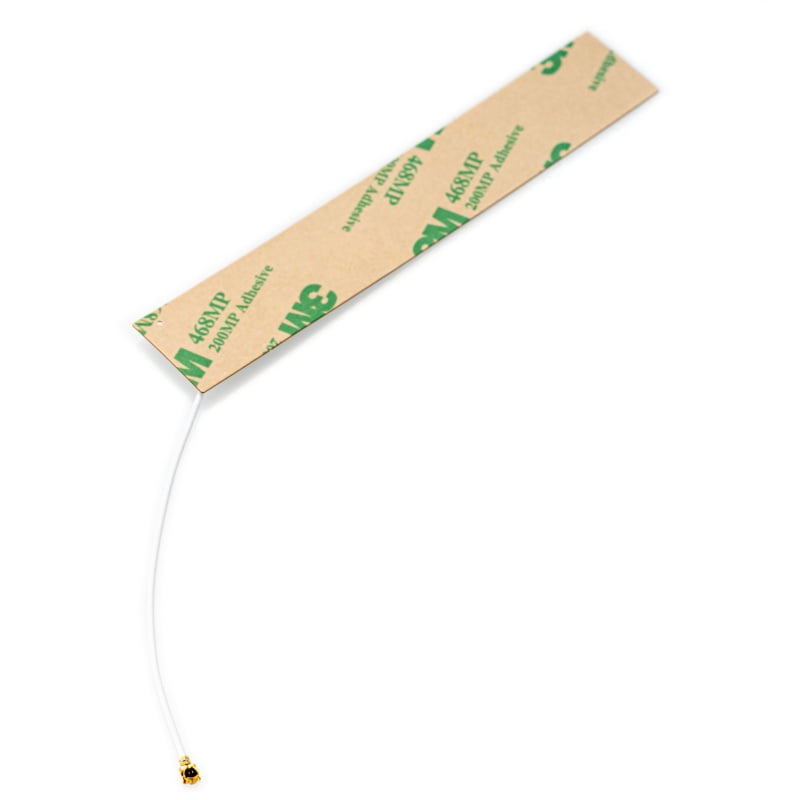

Sixfab LTE Full-Band PCB Antenna detail, flexible FPC body and 100 mm pigtail terminating in a u.FL (IPEX MHF1) plug

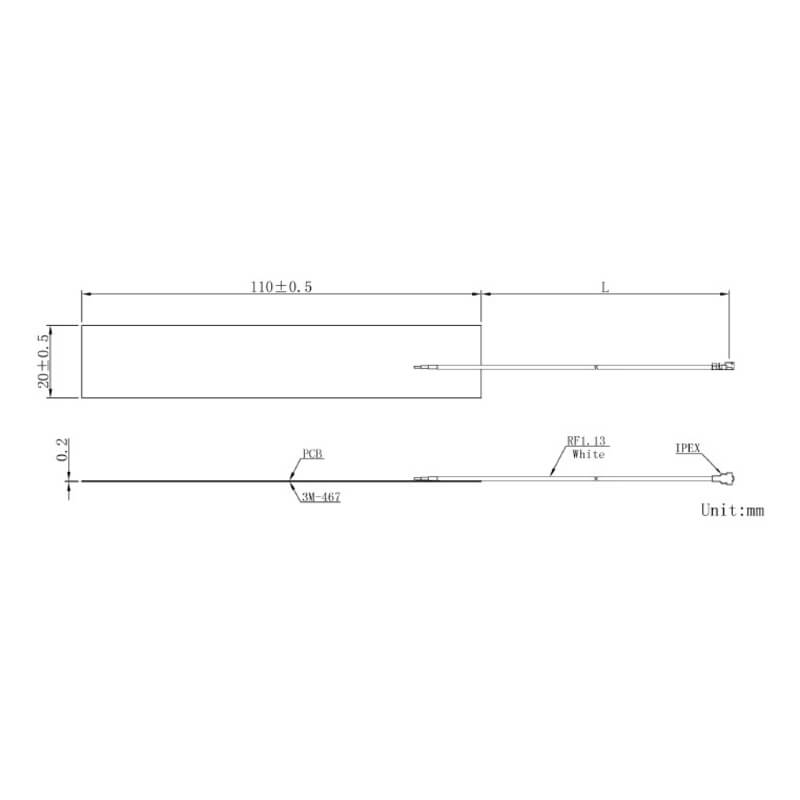

LTE Full-Band PCB Antenna dimensional drawing, 110 x 20 x 0.15 mm FPC with 100 mm u.FL pigtail callout

LTE Full Band PCB Antenna - u.FL Plug - 100mm

SKU: S77 In stock
€7,90

Prices excl. VAT · Shipping calculated at checkout · Shipping policy
Request a quote
  • Ships from Germany in 1–3 business days
  • 2-year warranty
  • Secure checkout

Description

This 4.6dBi peak gain full band LTE antenna has self-adhesive, 100mm cable with u.FL connector.

It works with Cellular Modems and 3G/4G and LTE Base HAT perfectly.

Highlights

  • 2G/3G/4G coverage
  • LTE 700, GSM850, GSM900, DCS1800, PCS1900, WCDMA2100, LTE B7 (2500-2690 MHz), LTE B40 (2300 – 2400 MHZ)
  • FPC Dimension: 110*20*0.15mm
  • 100mm cable length
  • 3M Self-adhesive

Technical specifications

Frequency 698~960 / 1710~2690 MHz
Polarization Linear
Impedance 50 Ω
Max. Op. Temp. -40°C to +85°C
Dimensions 110 x 20 x 0.15mm. 100mm Cable Length
Connection u.FL(IPEX)
Compliance RoHS

What's in the box

  • LTE Full Band PCB Antenna – u.FL Plug – 100mm×1
