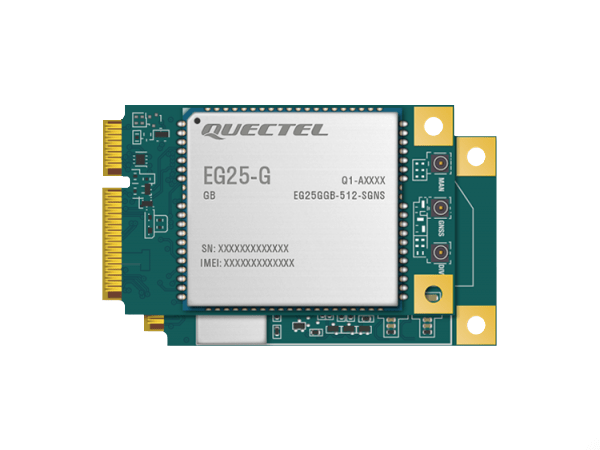

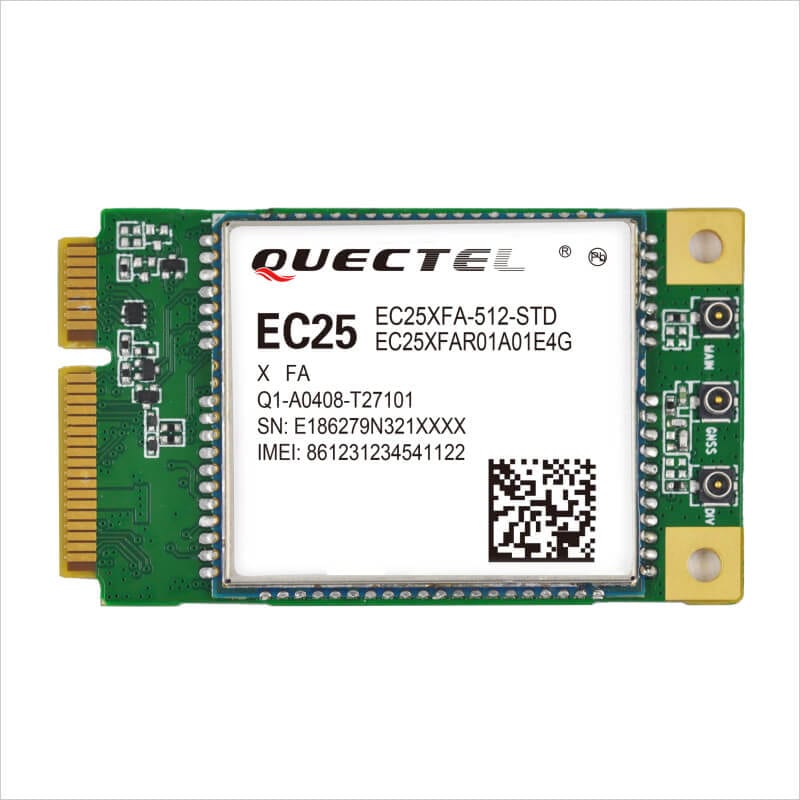

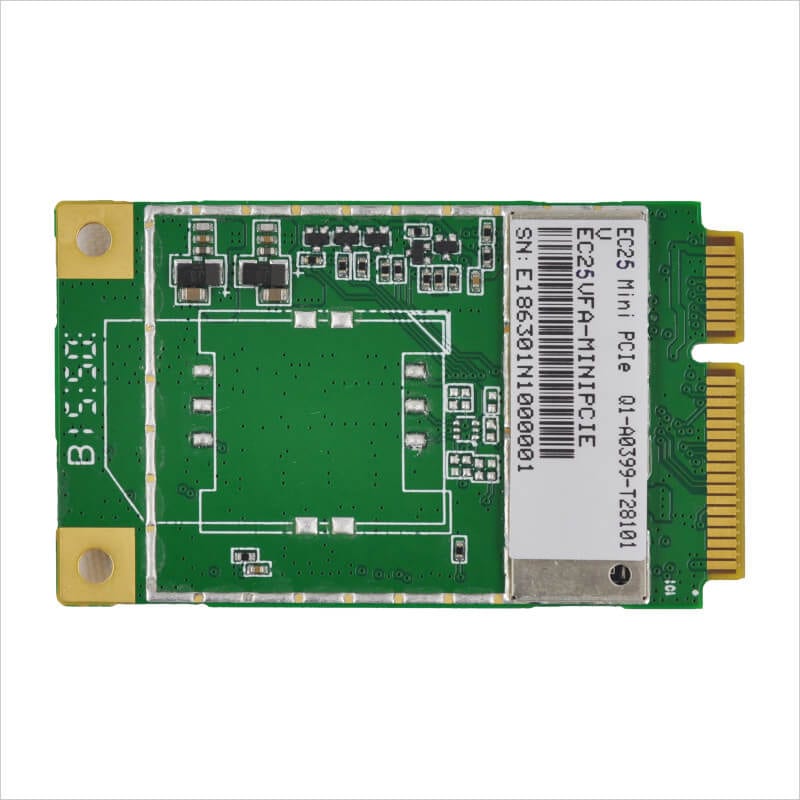

Quectel EG25/EC25 Mini PCIe 4G/LTE Module
Request a quote- Ships from Germany in 1–3 business days
- 2-year warranty
- Secure checkout
Description
This product contains only the Quectel EG25 Mini PCIe 4G/LTE Module. Additional components required for Raspberry Pi use include a Base HAT, an LTE antenna, and a GPS/GNSS antenna.
Compatible with the Sixfab 3G-4G/LTE Base HAT for easy project integration, with fallback compatibility with UMTS/HSPA+ UC20 and multi-mode LTE EC20/EC25 modules, a multi-constellation GNSS/GPS receiver and MIMO technology.
Performance at a glance
- LTE Cat 4150 Mbps DL / 50 Mbps UL (FDD)
- 51 × 30 × 4.9 mmMini PCIe
- −35 → +75 °COperating temperature
Highlights
- Base HAT compatibleCompatible with Sixfab 3G-4G/LTE Base HAT for easy project integration.
- Fallback compatibilityWith UMTS/HSPA+ UC20 and multi-mode LTE EC20/EC25 modules.
- Multi-constellation GNSSGNSS/GPS receiver for fast, accurate positioning.
- MIMOMIMO technology for improved data rates and link reliability.
Technical specifications
| General | |
|---|---|
| Best for | IoT applications requiring ultra-compact design and extended operating temperature range |
| Regions | Global |
| Max data speeds | |
| LTE | FDD: 150Mbps (DL)/50Mbps (UL) · TDD: 130Mbps (DL)/30Mbps (UL) |
| UMTS | DC-HSDPA: 42Mbps (DL) · HSUPA: 5.76Mbps (UL) · WCDMA: 384Kbps (DL/UL) |
| GSM | EDGE: 296Kbps (DL)/236.8Kbps (UL) · GPRS: 107Kbps (DL)/85.6Kbps (UL) |
| Hardware | |
| Positioning | GPS, GNSS |
| Electrical | Nominal: 3.3 VDC · Range: 3.0-3.6 VDC |
| Operating temp | -35 °C to +75 °C |
| Dimensions | 51 × 30 × 4.9 mm |
| Certifications | |
| Carrier | Deutsche Telekom, Verizon, AT&T, Sprint, U.S. Cellular, Telus, Rogers |
| Regulatory | SRRC/NAL/CCC/GCF/CE/FCC/PTCRB/IC/Anatel/IFETEL/KC/NCC/JATE/TELEC/RCM/NBTC/ICASA/IMDA |
| Other approvals | WHQL |
| Compliance | RoHS, REACH |
Features
- 3GPP E-UTRA Release 11 compliant
- 3GPP TS27.007 and Enhanced AT Commands support
- USB 2.0 High Speed (up to 480Mbps)
- 1.8V/3.0V (U)SIM Card Interface
- LED_WWAN for network status indication
- W_DISABLE for RF function control
- DFOTA (Delta Firmware Upgrade Over the Air)
- eCall and DTMF support
- (U)SIM Card Detection
- UART × 1
- PERST# for module resetting
- Antenna: DL MIMO with Rx-diversity/GNSS antenna support
- Protocols: TCP/UDP/PPP/FTP(S)/HTTP(S)/NTP/PING/QMI/CMUX/SMTP(S)/MMS/SSL/FILE/NITZ
Speed highly depends on antenna, environment and distance to base stations.
Key applications
- Video and music streaming
- Large data downloads and uploads
- LTE dongle/router
- Real-time environmental monitoring
- High-speed GPS tracking
- Smart city and agriculture applications
- Mobile internet hotspot
- Smart parking solutions
- Security and asset tracking
What's in the box
- Quectel EG25-G Mini PCIe 4G IoT Module×1
