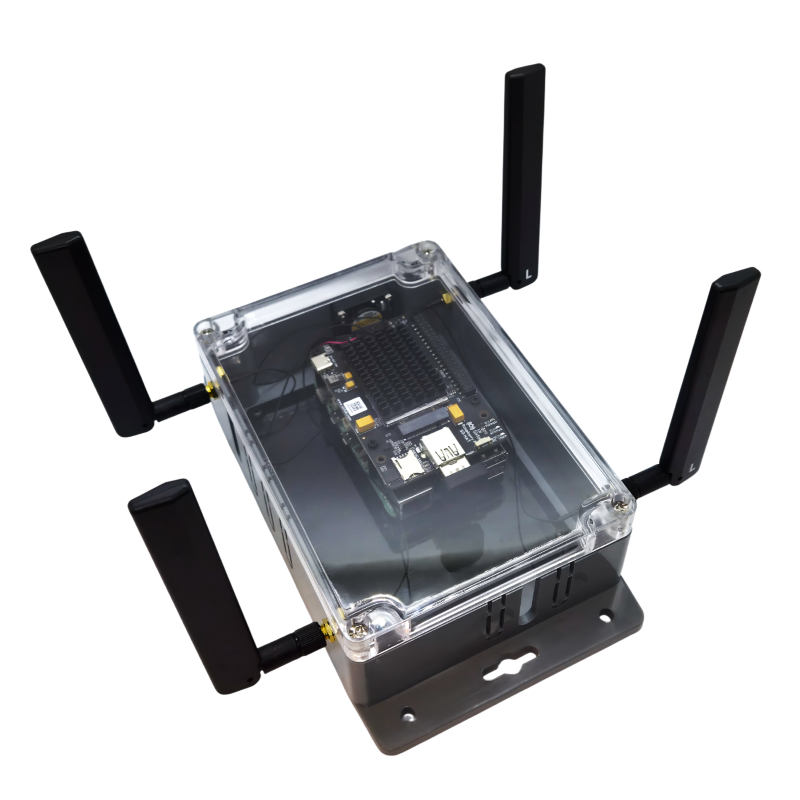

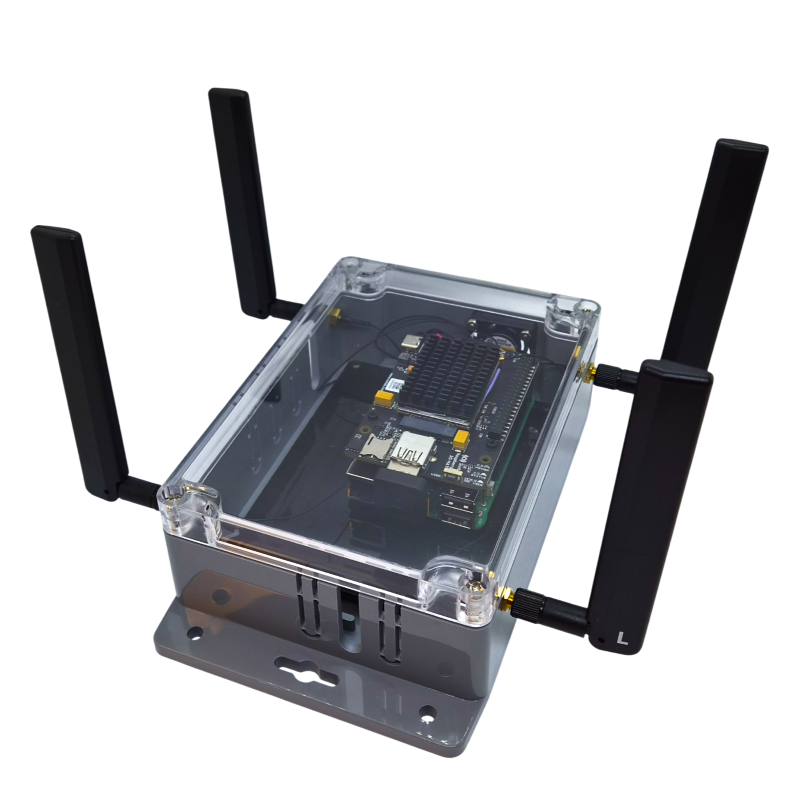

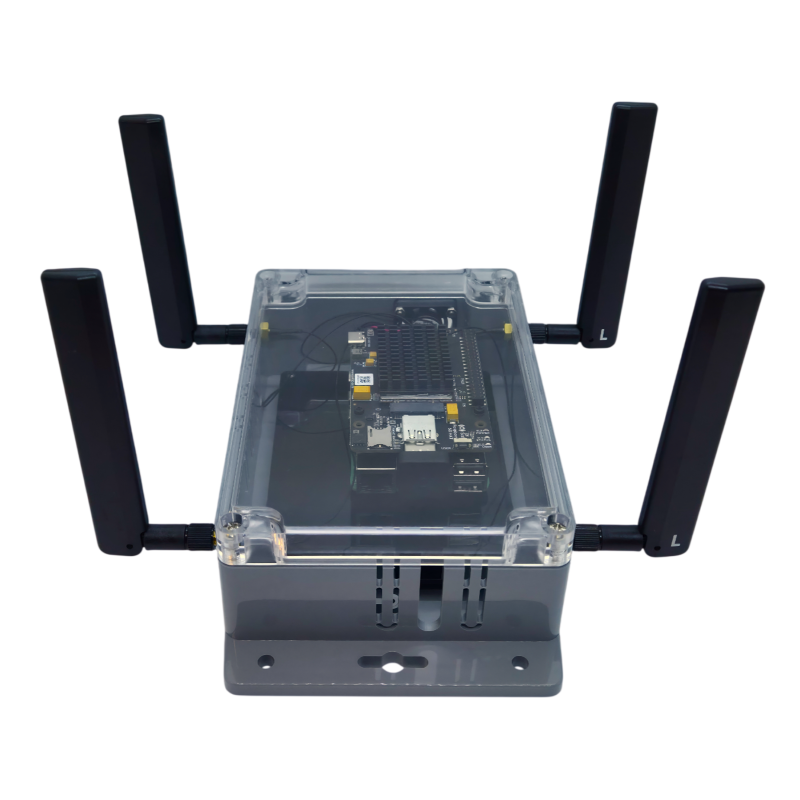

Sixfab 5G Development Kit v2 for Raspberry Pi
Request a quote- Ships from Germany in 1–3 business days
- 2-year warranty
- Secure checkout
Description
The Sixfab 5G Development Kit v2 for Raspberry Pi brings ultra-high-speed 5G connectivity to your Raspberry Pi 5 and Raspberry Pi 4 projects. It comes as a single, highly flexible base platform without an M.2 module pre-installed, so you can add a Quectel RM520N-GL or bring your own compatible 5G/4G module.
- Hardware designed for Raspberry Pi 5 and 4
- Compatible with the Quectel RM520N-GL M.2 5G module
- Enclosure, antennas and USB bridges are included
- Development friendly, modification-ready hardware
- The HAT can also be used via USB as a standalone dongle
- Middleware compatible via USB with Linux-based embedded platforms
Performance at a glance
- Raspberry Pi 5 / 4Designed for both
- Nano SIMAccessible on top of the HAT
- M.2 5G slotQuectel RM520N-GL compatible
Highlights
- All-in-one developmentIncludes a project enclosure, high-performance SMA antennas, cooling fan, cellular module heatsinks and a 5V Type-C power supply (minus the Pi and modem).
- Raspberry Pi compatibilityFully compatible with Raspberry Pi 5 and Raspberry Pi 4.
- Standalone capableThe modification-ready HAT can be used as a standalone 5G dongle via USB with Linux-based embedded platforms, including NVIDIA Jetson Developer Kits, Raspberry Pi, NXP i.MX platforms, and standard Linux & Windows PCs.
- Optimized thermal managementCooling fan, dedicated heatsinks and a ventilated enclosure keep the modem and Pi cool.
- Configuration readyBoth the enclosure and the base plate allow hardware modification.
- Simple setupEasy-to-follow tutorials to get connected.
What's new in the kit
- Raspberry Pi 5 readyBuilt to handle the enhanced power and data demands of the newest Pi, and still perfectly compatible with Pi 4.
- Nano SIM slotUpgraded from Micro to Nano SIM for modern SIM card compatibility.
Build it your way
The 5G Development Kit comes as a single, highly flexible base platform without an M.2 module pre-installed.
Option 2
Bring your own
Use a compatible M.2 5G/4G module of your choice.
Technical specifications
| Best for | 5G/4G network tests, IoT, and eMBB applications |
|---|---|
| Data speeds | Depends on module & carrier |
| Compatibility | Raspberry Pi 5, Raspberry Pi 4 |
| SIM interface | Nano SIM (easily accessible on top of the HAT) |
| Positioning | GPS, GNSS (depending on paired M.2 module) |
| Electrical | 5V DC |
| Operating temperature | -25 °C to 70 °C |

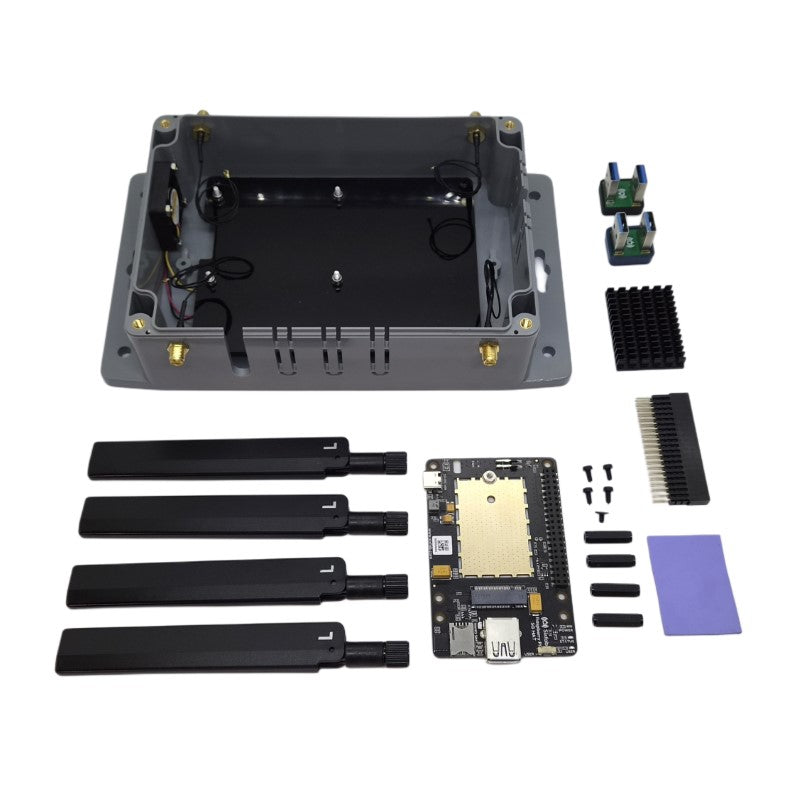

What's in the box

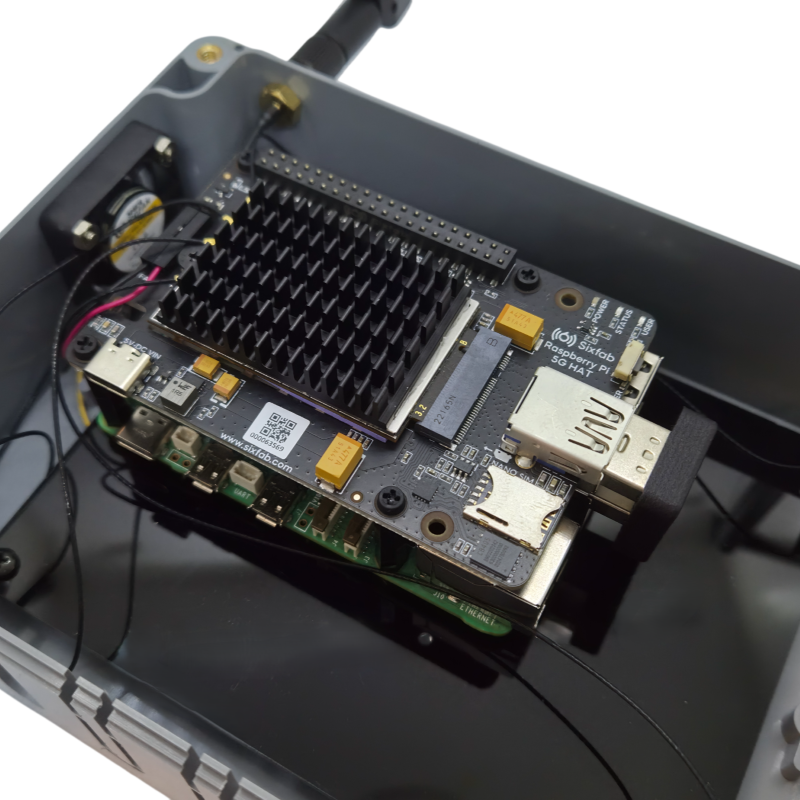

- Sixfab 5G HAT v2 for Raspberry Pi×1
- Plastic enclosure for Raspberry Pi 5G projects×1
- 5G/LTE Cellular Omni-Directional Antenna×4

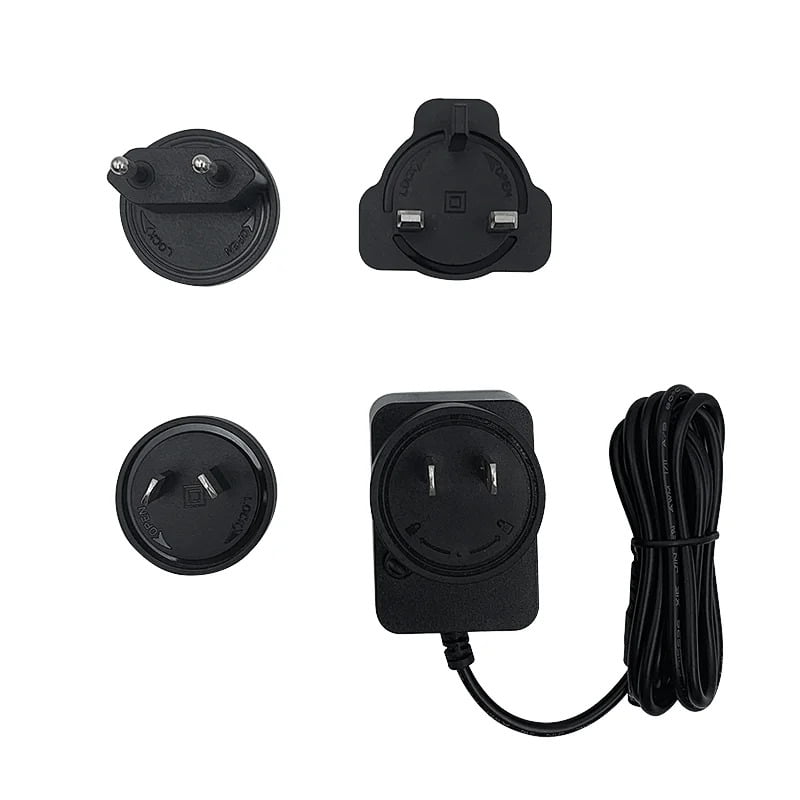

- 5V DC – 3A Type-C Power Supply with US, UK, EU, AU plugs×1
- USB 3.0 Bridge Connector for Raspberry Pi 5×1
- USB 3.0 Bridge Connector for Raspberry Pi 4×1
- Cooling fan and antenna adapters (installed on the enclosure)×1

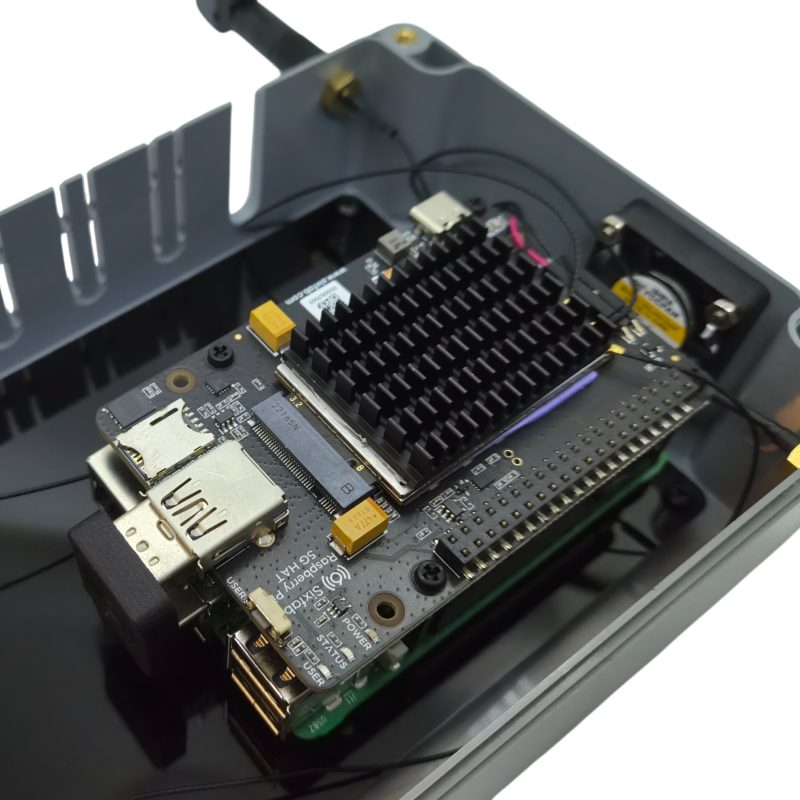

- Heatsink for M.2 module×1
- Screws and standoffs1 set
Requires a Raspberry Pi 5 or 4 and an M.2 5G module (not included).
Compatibility
Supported hosts
- Raspberry Pi 5
- Raspberry Pi 4
| M.2 module | Quectel RM520N-GL M.2 5G Module |
|---|---|
| Via USB | Linux-based embedded platforms · NVIDIA Jetson Developer Kits · Raspberry Pi · NXP i.MX platforms · Standard Linux & Windows PCs |
