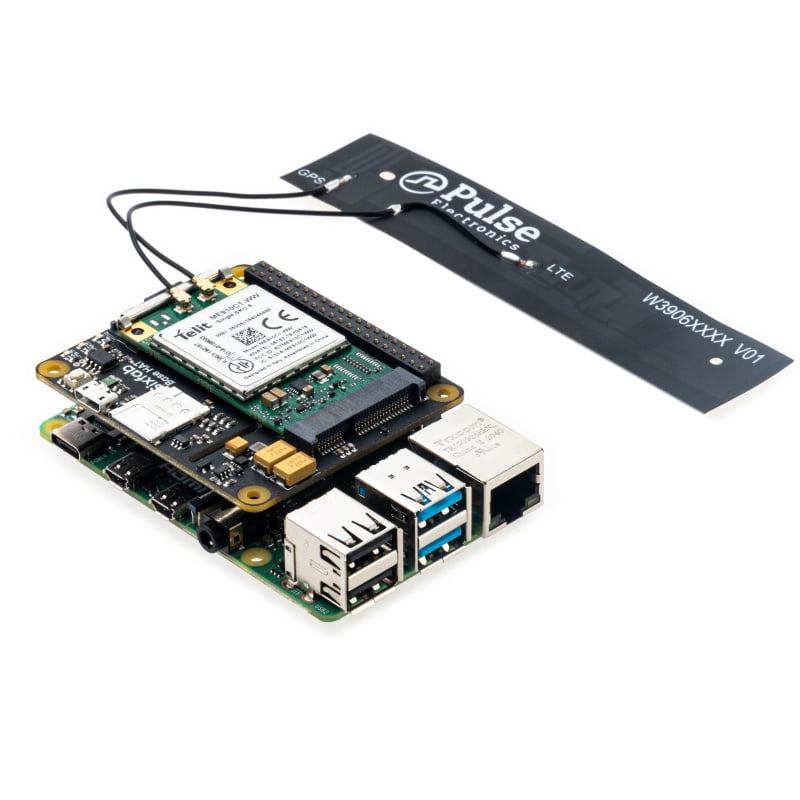

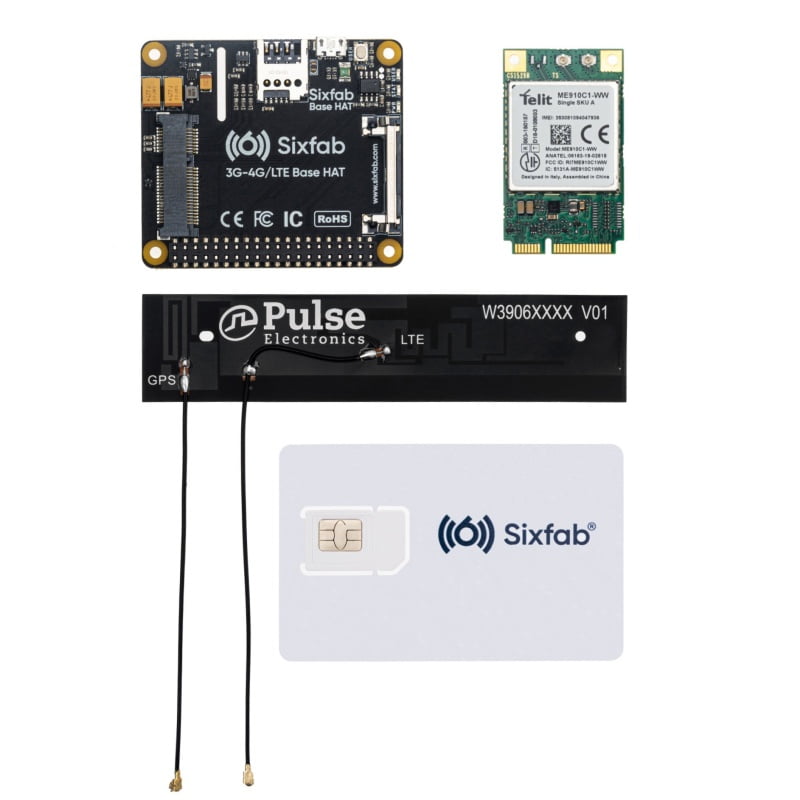

Five-component LTE-M Cellular IoT Kit pack contents, Sixfab Base HAT, Telit ME910C1-WW module, LTE/GNSS dual u.FL antenna, micro-USB cable, and Sixfab IoT SIM

LTE-M Cellular IoT Developer Kit for Raspberry Pi

SKU: B70 Out of stock

Ships from Germany in 1–3 business days
2-year warranty
Secure checkout

Description

Stop fighting against "easy" software wrappers that hide the details you need to control. The LTE-M Cellular IoT Developer Kit provides raw hardware infrastructure for LTE-M, NB-IoT, and GNSS without pre-packaged software bloat.

This kit is a hardware-first solution. It exposes the raw power of the Telit module directly to your Raspberry Pi via USB.

Performance at a glance

LTE-M & NB-IoTTelit ME910C1-WW
300 / 375 kbpsLTE Cat M1 DL / UL
Integrated GNSSGPS, GLONASS, Beidou, Galileo

Highlights

Direct AT command accessFull control over network registration and data context.
Protocol freedomImplement MQTT, COAP, HTTP/S, or TCP/UDP exactly how your architecture requires.
OS independenceCompatible with Raspberry Pi OS, Ubuntu, or any Linux distro.
Telit ME910C1-WWThe gold standard for Low Power Wide Area (LPWA) networking.
Sixfab Base HATA battle-tested bridge that manages power delivery efficiently, preventing the dreaded "brownouts".

Technical specifications

Best for	Low-bandwidth applications like telemetry or sensor monitoring
Cellular module	Telit ME910C1-WW (Mini PCIe)
Network technology	LTE-M (Cat M1) & NB-IoT (NB1)
Global bands	B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B26, B28
Max. data speeds	LTE Cat M1: 300 kbps (DL) / 375 kbps (UL) · NB-IoT: 32 Kbps (DL) · EGPRS: 296 kbps (DL) / 236 kbps (UL)
Positioning	Integrated GNSS (GPS, GLONASS, Beidou, Galileo)
Electrical	5V DC
Operating temp	-25 °C to +70 °C
Dimensions	57 x 65 x 07 mm - no header · 57 x 65 x 14 mm - short header · 57 x 65 x 20 mm - long header
