Description

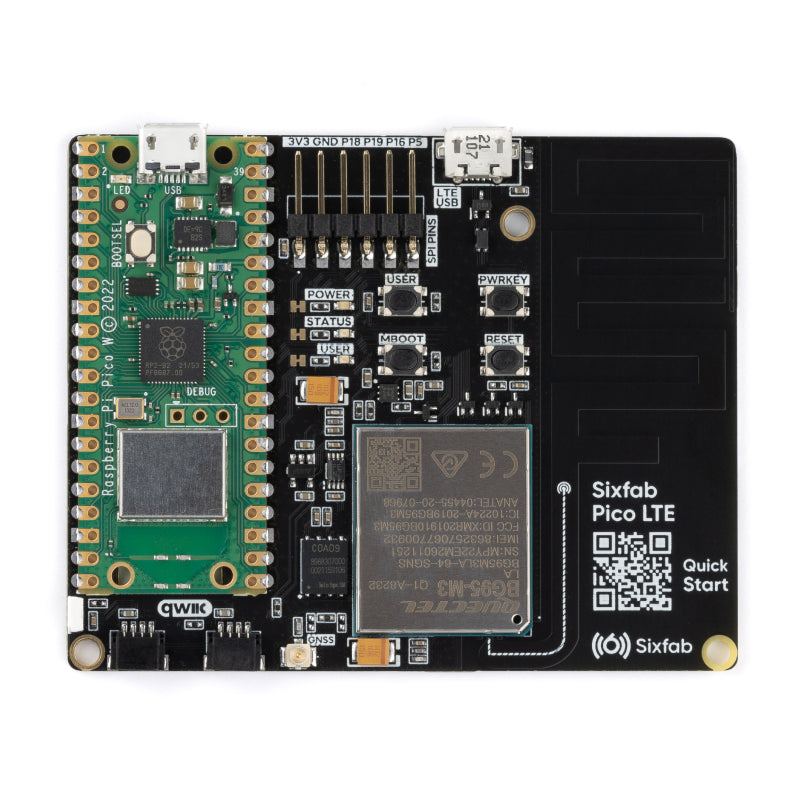

Sixfab Pico LTE is an IoT development board designed by Sixfab, Inc. It combines the power of Raspberry Pico W and the Quectel BG95-M3 modem, providing a comprehensive platform for IoT evaluation and development purposes.
An enhanced Raspberry Pico W experience with the MicroPython SDK developed by Sixfab, a comprehensive platform with integrated components and a feature-rich design, and simple programming with the extensive resources available for the Raspberry Pi ecosystem.
Performance at a glance
- CAT-M1588 kbps DL / 1119 kbps UL
- 1GB + SIM activationFirst year offer included
- 60 × 75 mm−20 to 70 °C
Highlights
- HardwareDesigned for Raspberry Pi Pico W · global LTE-M connectivity modem · development ready interfaces.
- Sixfab Pico LTE SDKEnhanced official Raspberry Pi Pico W SDK with cellular connectivity · pre-integrated IoT platforms (AWS, Azure, ThingSpeak…).
- Embedded IoT SIMGlobal coverage · first year offer - 1GB data and SIM activation included.
Technical specifications
| Best for | Kickstarting Raspberry Pi Pico based remote applications |
|---|---|
| Regions | Global |
| Max. data speeds | CAT-M1: 588 kbps (DL) / 1119 kbps (UL) |
| Power and data | Pico W micro USB connector |
| Operating temp | -20 °C to 70 °C |
| Board dimensions | 60 mm x 75 mm |
| Onboard interfaces | NeoPixel LED, user LED, user button, LTE status LED, Qwiic Connector (x2), SPI (Camera Support) |
| Compliance | RoHS |
Key features & benefits
- Soldered Raspberry Pi Pico W onto the PCB for seamless integration
- Supports CAT-M1 cellular IoT global connectivity with Quectel BG95-M3 module
- Additional micro USB connector for easy firmware and modem debugging during development
- Onboard LTE antenna for optimal performance with uFL connector for passive GPS/GNSS antenna
- Includes Neopixel LED, user button, user LED, LTE Status LED, Qwiic connector, and Pico W reset button
- Embedded SIM with MFF2 form factor for fast global cellular network connectivity
- Pre-integrated with AWS IoT, Azure IoT, Telegram API, ThingSpeak, Slack API, Scriptr.io

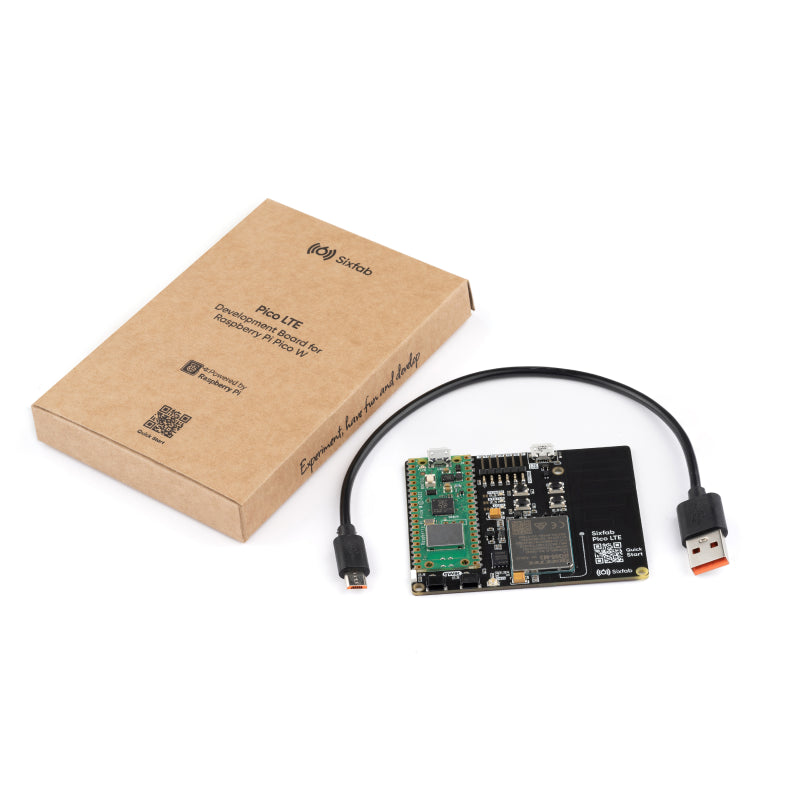

What's in the box
- Sixfab Pico LTE (Raspberry Pi Pico W included)×1
- Micro-USB to USB-A Cable×1
