Sixfab Pico LTE 2
Request a quote- Ships from Germany in 1–3 business days
- 2-year warranty
- Secure checkout
Description

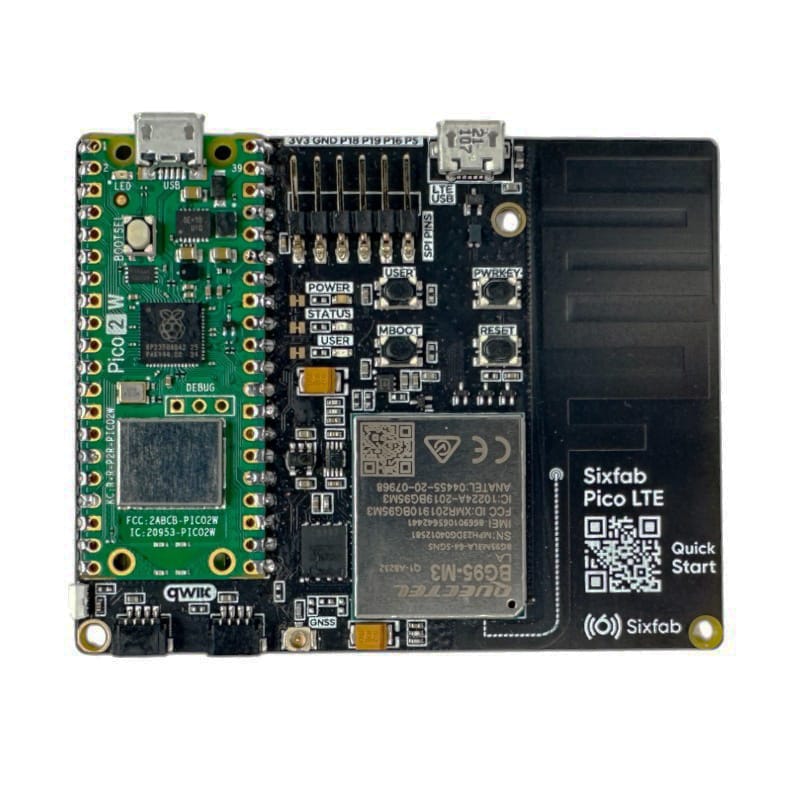

Sixfab Pico LTE 2 is an IoT development board designed by Sixfab, Inc. It combines the power of the Raspberry Pi Pico 2 W and the Quectel BG95-M3 modem, providing a comprehensive platform for IoT evaluation and development purposes.
New version updated with Pico 2 W: enhanced processing power with the RP2350 chip, improved security with Arm TrustZone, Bluetooth 5.2 and increased memory.
Performance at a glance
- CAT-M1588 kbps DL / 1119 kbps UL
- RP2350Arm Cortex-M33 or RISC-V, up to 150 MHz
- 1GB + SIM activationFirst year offer included
Highlights
- HardwareDesigned for Raspberry Pi Pico 2 W · global LTE-M connectivity modem · development ready interfaces.
- Sixfab Pico LTE SDKEnhanced official Raspberry Pi Pico 2 W SDK with cellular connectivity · pre-integrated IoT platforms (AWS, Azure, ThingSpeak).
- Embedded IoT SIMGlobal coverage · first year offer - 1GB data and SIM activation included.
Technical specifications
| Best for | Kickstarting Raspberry Pi Pico 2 W based remote applications |
|---|---|
| Regions | Global |
| Max. data speeds | CAT-M1: 588 kbps (DL) / 1119 kbps (UL) |
| Power and data | Pico 2 W micro USB connector |
| Operating temp | -20 °C to 70 °C |
| Board dimensions | 60 mm x 75 mm |
| Onboard interfaces | NeoPixel LED, user LED, user button, LTE status LED, Qwiic Connector (x2), SPI (Camera Support) |
| Compliance | RoHS |
Improvements over the previous version
- Enhanced processing power with the RP2350 chip (Arm Cortex-M33 or RISC-V cores)
- Each core operates at up to 150 MHz
- Improved security with Arm TrustZone
- Bluetooth 5.2 for IoT ecosystem compatibility
- Increased memory
- SHA-256 accelerator for cryptographic hashing
- TRNG for encryption key generation
- Secure Boot preventing unauthorized firmware access
Key features & benefits
- New version updated with Pico 2 W

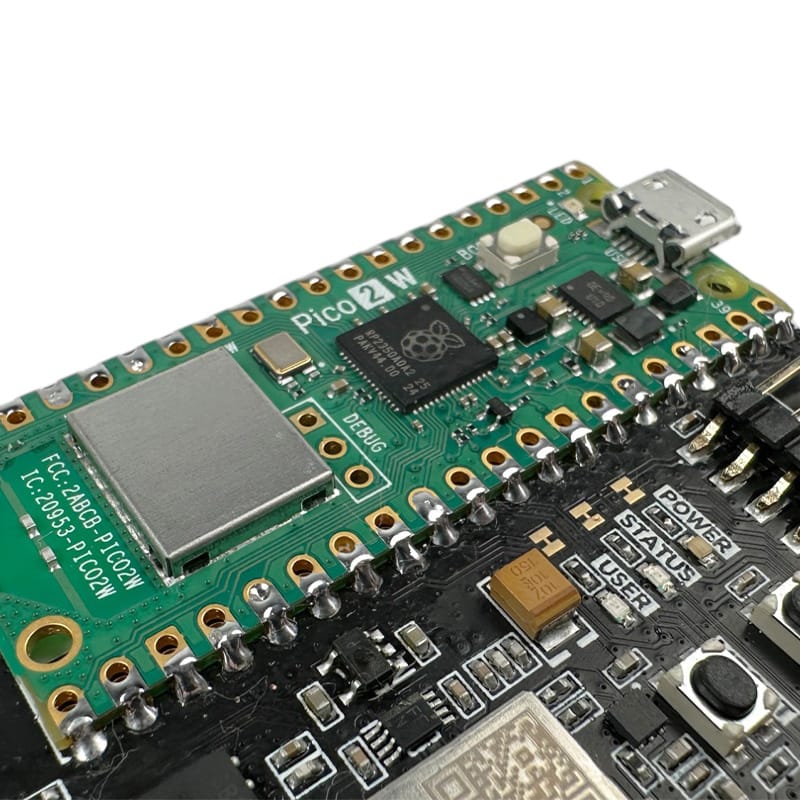

- Soldered Raspberry Pi Pico 2 W onto the PCB for seamless integration
- Supports CAT-M1 cellular IoT global connectivity with Quectel BG95-M3 module
- Additional micro USB connector for firmware and modem debugging
- Onboard LTE antenna with uFL connector for passive GPS/GNSS antenna
- Neopixel LED, user button, user LED, LTE Status LED, Qwiic connector, and reset button
- Embedded SIM with MFF2 form factor for global cellular network access
- Pre-integrated with AWS IoT, Azure IoT, Telegram API, ThingSpeak, Slack API, Scriptr.io

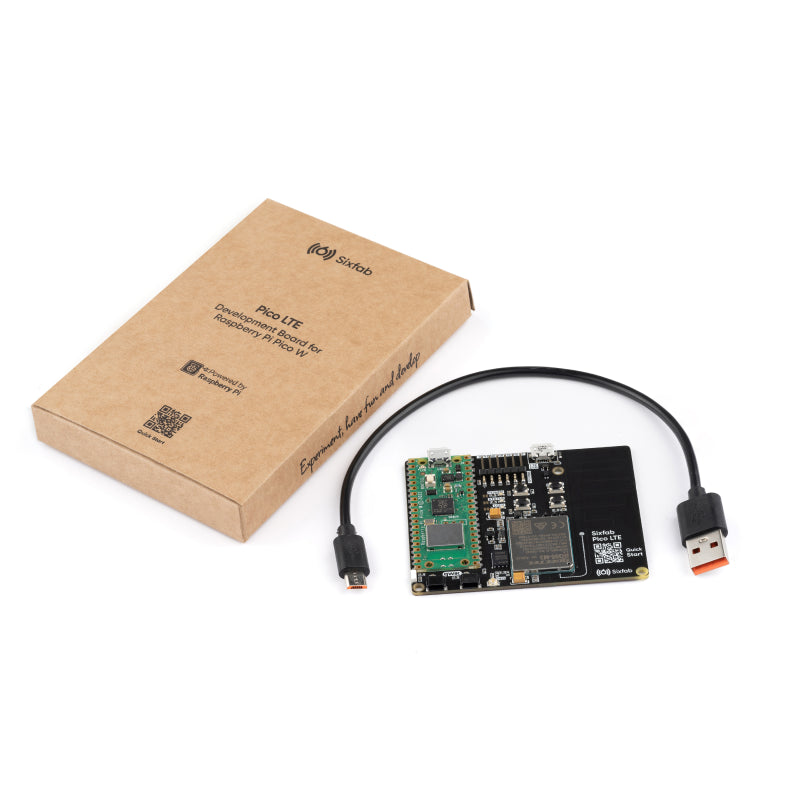

What's in the box
- Sixfab Pico LTE 2 (Raspberry Pi Pico 2 W included)×1
- Micro-USB to USB-A Cable×1
