Sixfab LTE/5G High-Performance Antenna SMA
Request a quote- Ships from Germany in 1–3 business days
- 2-year warranty
- Secure checkout
Description

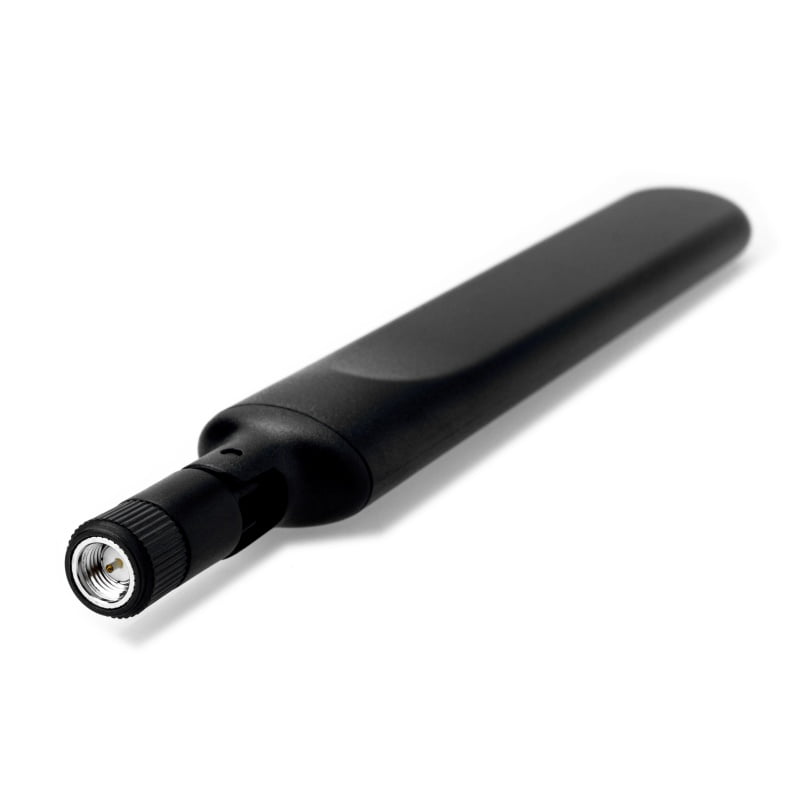

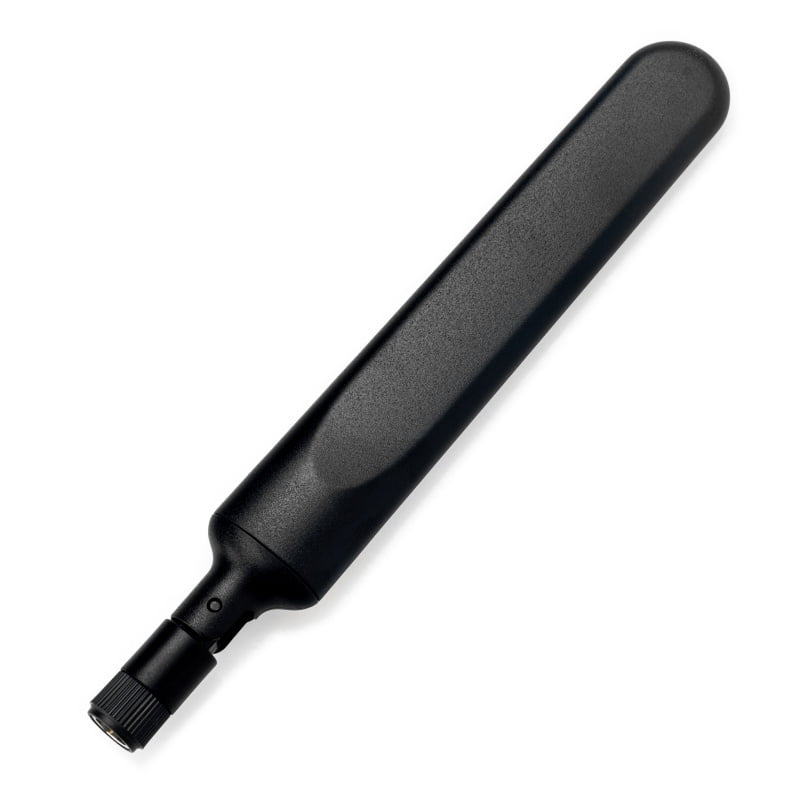

Constructed with an ergonomic blade design to blend well to the outside of a device, this terminal antenna supports 5G/4G/3G/2G applications and performs great for LTE-M and 5G applications.

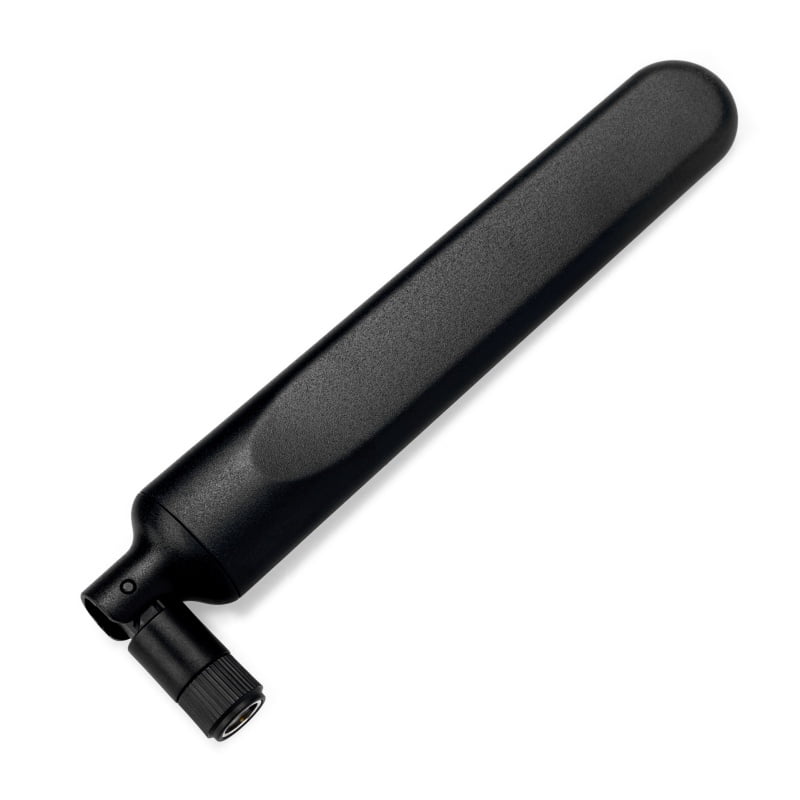

It features a hinged swivel-mounted design for various orientations and free-space deployment, with a rotatable connector mount to optimize positioning for your specific use case.
Performance at a glance
- 617-3800 MHz5G / 4G / 3G / 2G
- 5.00 dBiPeak gain @ 2500-2690 MHz
- < 21 g13.5 × 22.5 × 143.7 mm
Highlights
- High-performance dipoleSupports LTE bands 1-21, 23-30, 33-41, 71.
- Cellular IoTLTE-M (Cat-M1) and NB-IoT.
- Regional band supportAT&T (12, 17), T-Mobile (71), Verizon (13), Europe (8, 20), Latin America (5, 28), Asia Pacific (5, 8, 20, 28).
- Broad compatibilityLTE, HSPA+, WCDMA, CDMA, GSM, GPRS, DCS1800, PCS1900.
Technical specifications
| Frequency coverage | 617-960 MHz; 1420-1660 MHz; 1710-2170 MHz; 2300-2400 MHz; 2500-2690 MHz; 3200-3800 MHz |
|---|---|
| Polarization | Linear |
| Impedance | 50 Ω |
| Connection | SMA Plug (Standard) |

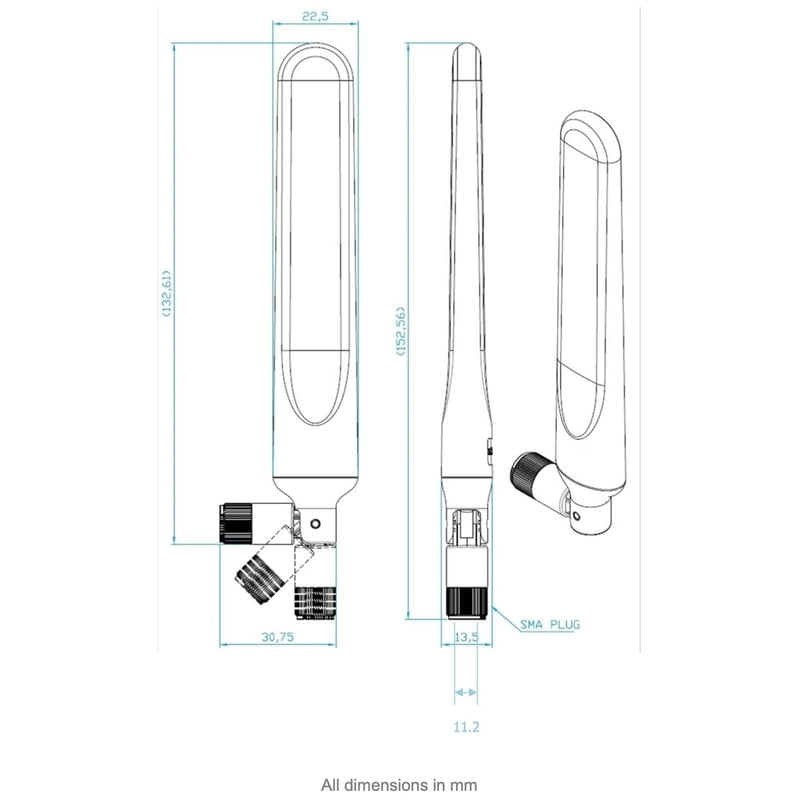

| Dimensions | 13.5 x 22.5 x 143.7 mm |
| Weight | < 21 g |
| Operating temp | -20 °C to +70 °C |
| Compliance | RoHS |
Performance by frequency band
| Frequency | Peak gain (dBi) | Average gain (dBi) | Efficiency (%) | Return loss (dB) | VSWR |
|---|---|---|---|---|---|
| 617-960 MHz | 0.41 | -3.55 | >45 | <-5.56 | 2.30:1 |
| 1420-1660 MHz | 2.42 | -1.88 | >65 | <-5.56 | 2.20:1 |
| 1710-2170 MHz | 2.51 | -2.17 | >60 | <-5.56 | 2.20:1 |
| 2300-2400 MHz | 3.87 | -1.43 | >70 | <-5.56 | 1.55:1 |
| 2500-2690 MHz | 5.00 | -0.93 | >80 | <-5.56 | 1.65:1 |
| 3200-3800 MHz | 3.89 | -1.42 | >75 | <-5.56 | 2.10:1 |
What's in the box
- LTE/5G Antenna×1

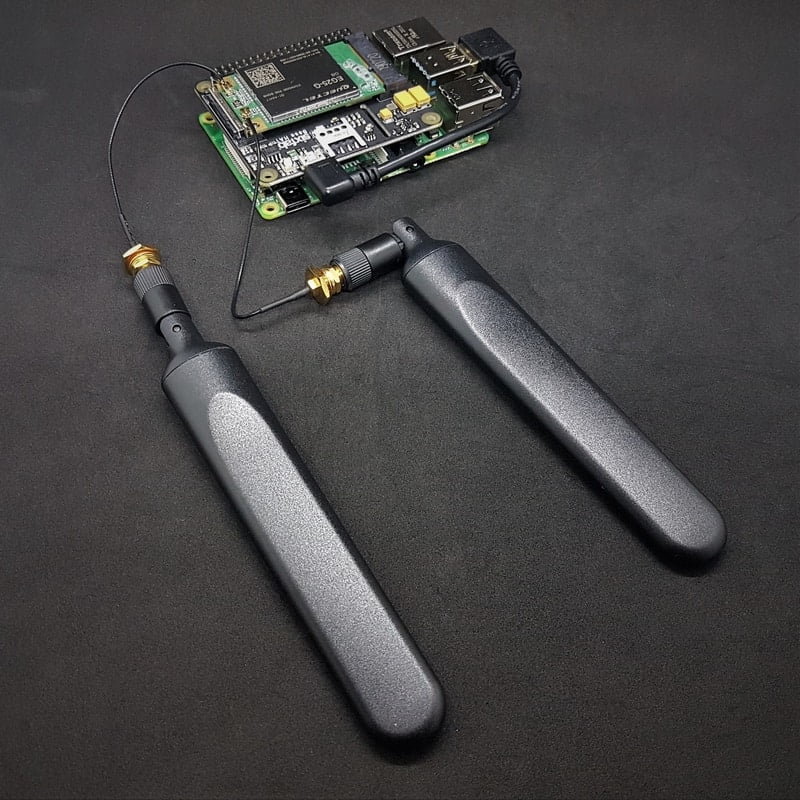

SMA connector: most LTE socket modems have a u.FL connector type. If the connector on your device is u.FL, SMA to u.FL adapter cables should be used.
