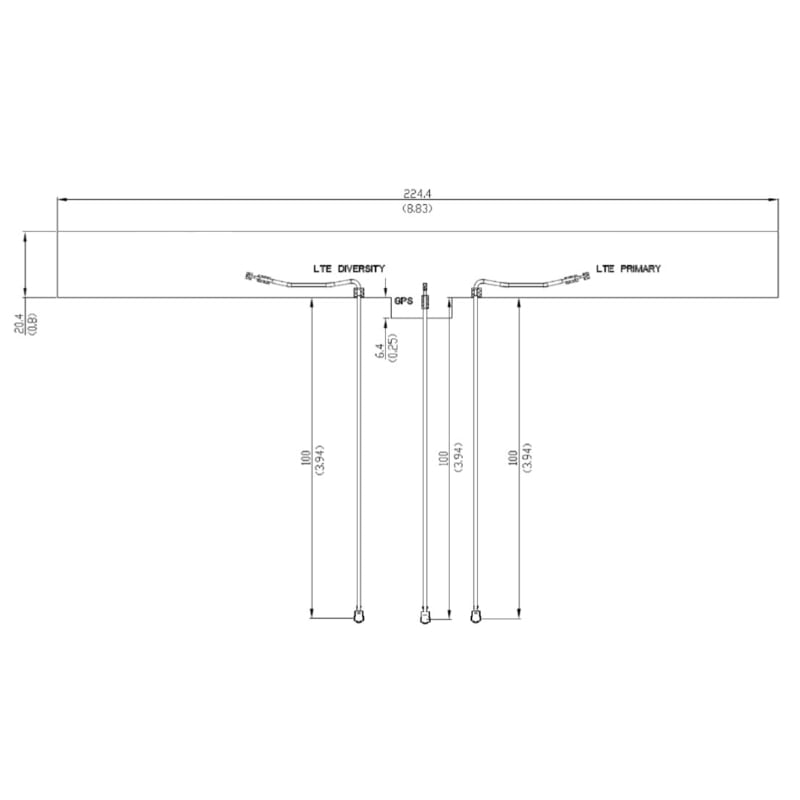

Dimensional drawing of the LTE Main + Diversity + GNSS triple-port antenna, 224 x 20.4 mm foldable enclosure with three 100 mm u.FL pigtails

LTE Main & Diversity & GNSS Triple Port u.FL Antenna - 100mm

SKU: S78 In stock
€12,50

Prices excl. VAT · Shipping calculated at checkout · Shipping policy
Request a quote
  • Ships from Germany in 1–3 business days
  • 2-year warranty
  • Secure checkout

Description

Main and Diversity LTE antennas combined with a GNSS antenna in a single formed antenna. Direct fit for Quectel EC25, Telit LE910C1 and Telit LE910C4 Mini PCIe LTE Module.

Highlights

  • 2G / 3G / 4G MiMo
  • 2G/3G/4G LTE coverage
  • Global LTE bands: B1-B23, B25-B29, B33-B42 (North America, Europe and Asia included Japan)
  • Foldable for tight spaces
  • Peak gains are between 3.4dBi-4.2dBi at the LTE bands (1695-3600 MHz) and 0.8dBi for the GNSS (1570-1610MHz)
  • Adhesive tape

Technical specifications

Frequency 698-960 / 1427.9-1510.9 / 1559-1610 / 1695-2200 / 2300-2700 / 3400-3600 MHz
Impedance 50 Ω
Dimensions 224 x 20.4mm (+6.4mm), 100mm Cable Length
Connection u.FL

What's in the box

  • LTE Main & Diversity & GNSS Triple Port u.FL Antenna – 100mm×1
