Tri-Band WiFi Antenna
Request a quote- Ships from Germany in 1–3 business days
- 2-year warranty
- Secure checkout
Description
This versatile antenna is engineered to provide a significant boost to your wireless communications. It supports the 6 GHz band for WiFi 6E/WiFi 7 devices operating in less congested spectrum, delivering higher throughputs and lower latency.
The design is ground plane independent, with backwards compatibility for Bluetooth and ZigBee standards.
Performance at a glance
- 2.4 / 5 / 6 GHzWiFi 6E / 7
- ~4.1 dBiPeak gain @ 2.4 GHz
- Up to ~84.5%Efficiency
Highlights
- Tri-band WiFi 6E/72.4 GHz, 5.0 GHz, and 6.0 GHz bands.
- High gainPeak gain of up to ~4.1 dBi on the 2.4 GHz band.
- High efficiencyEfficiency reaching up to ~84.5%.

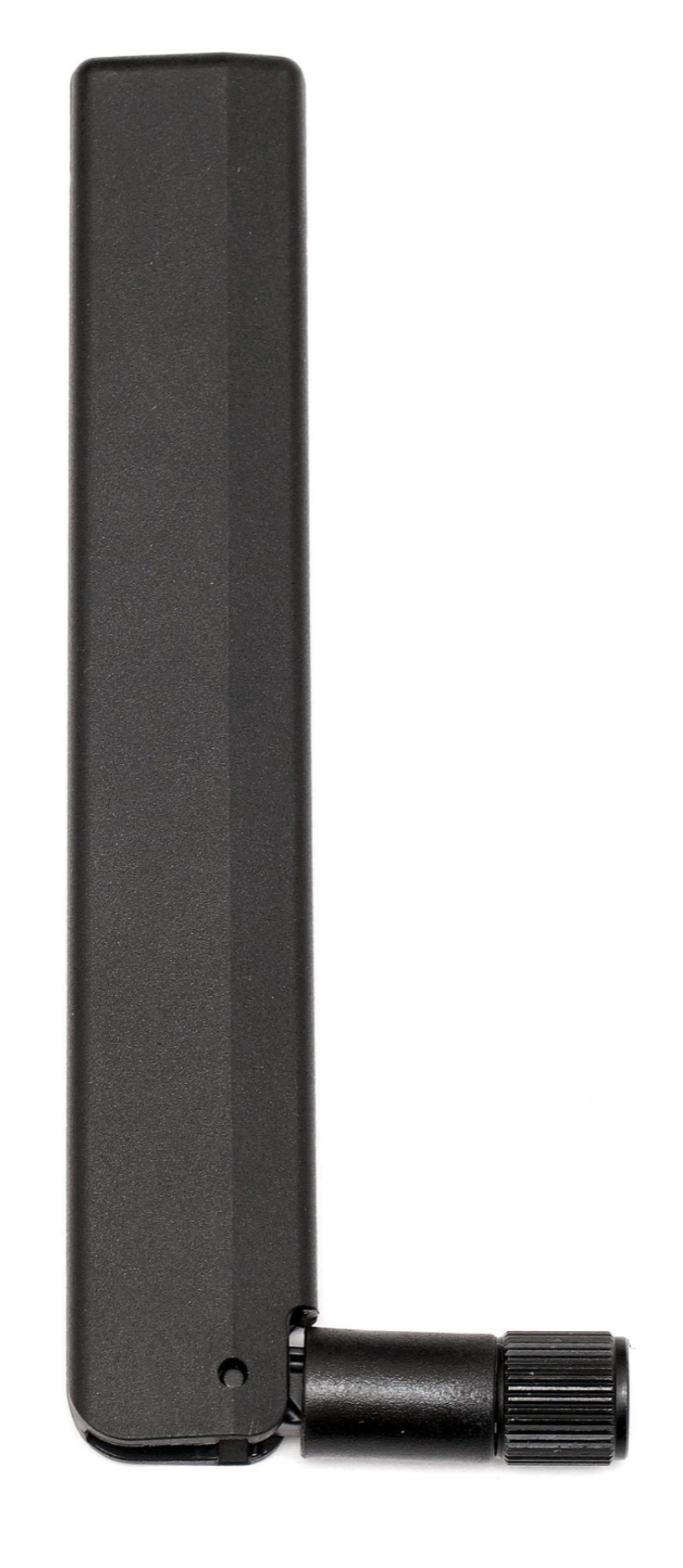

- Omni-directional360-degree radiation pattern.

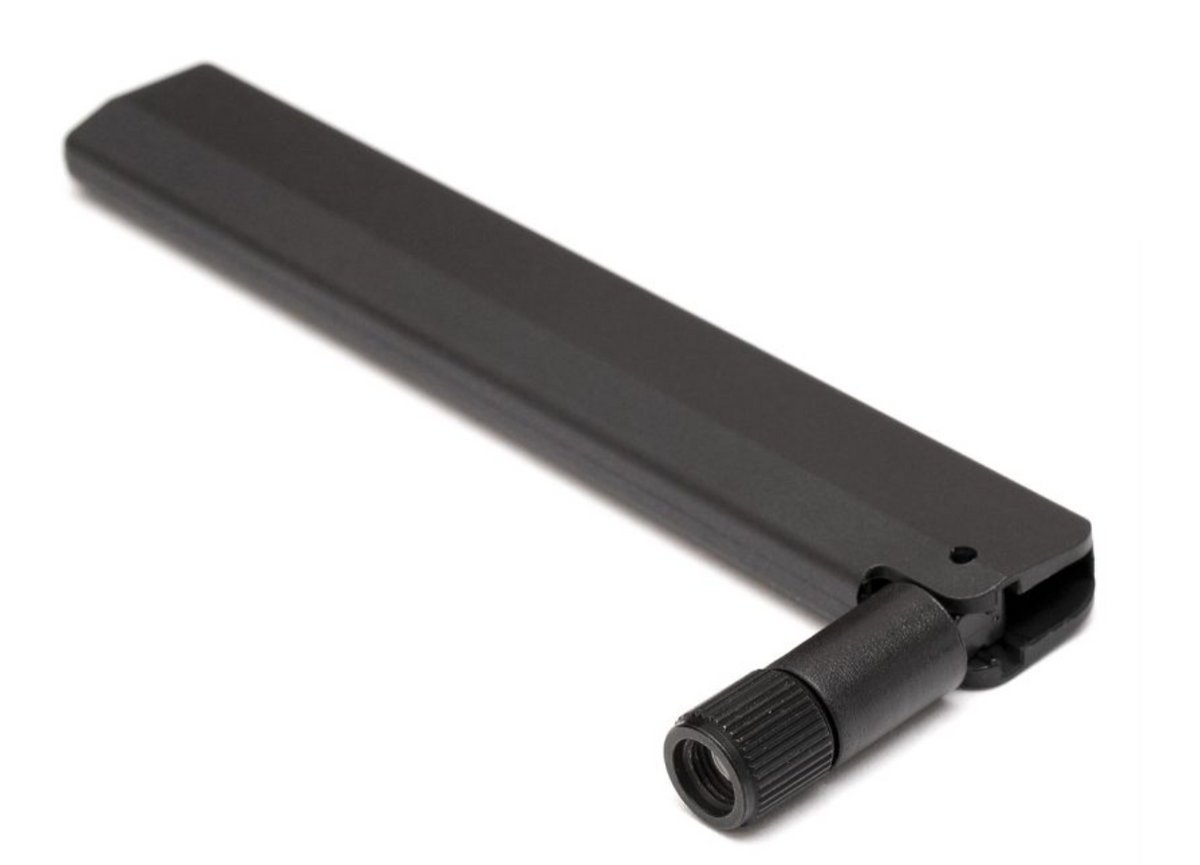

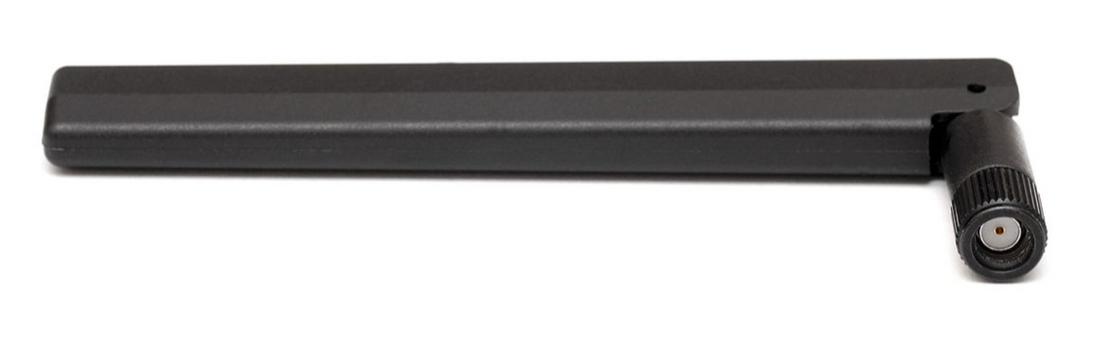

- Hinged RP-SMA-MaleFlexible positioning.
- RuggedUV-stable ABS radome, rated for a wide operating temperature range.
Technical specifications
| Frequency ranges | |
|---|---|
| 2.4 GHz | 2410-2490 MHz |
| 5.0 GHz | 4920-5925 MHz |
| 6.0 GHz | 5925-7125 MHz |
| Electrical | |
| Peak gain | ~4.1 dBi (2.4 GHz) · ~3.9 dBi (5.0 GHz) · ~2.8 dBi (6.0 GHz) |
| Efficiency | ~75.8% (2.4 GHz) · ~84.5% (5.0 GHz) · ~73% (6.0 GHz) |
| VSWR | ≤1.4:1 (2.4 GHz) · ≤1.7:1 (5.0 GHz) · ≤2.0:1 (6.0 GHz) |
| Impedance | 50 Ohm |
| Polarization | Linear |
| Max input power | 25 Watts |
| Physical | |

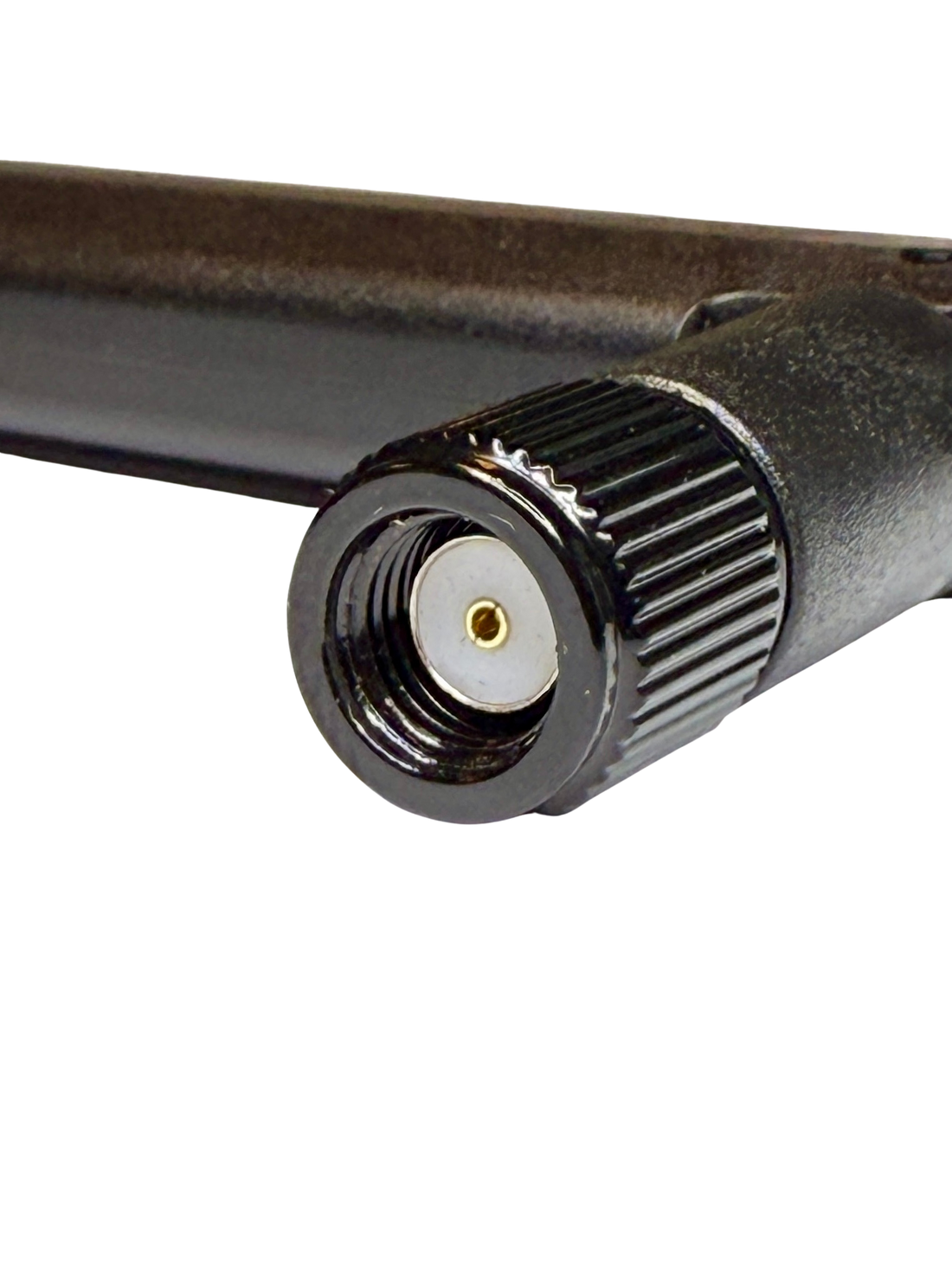

| Connector | RP-SMA-Male Standard |
| Radome material | ABS UV Stable |
| Operating temp | -40 °C to +85 °C |
| Dimensions | Straight: 135 mm × 19 mm × 10 mm · Right angle: 110 mm (H) × 42 mm (L) |
| Standards | |
| Supported standards | WiFi 6E, Bluetooth, ZigBee, ISM, SigFox, LoRa |
